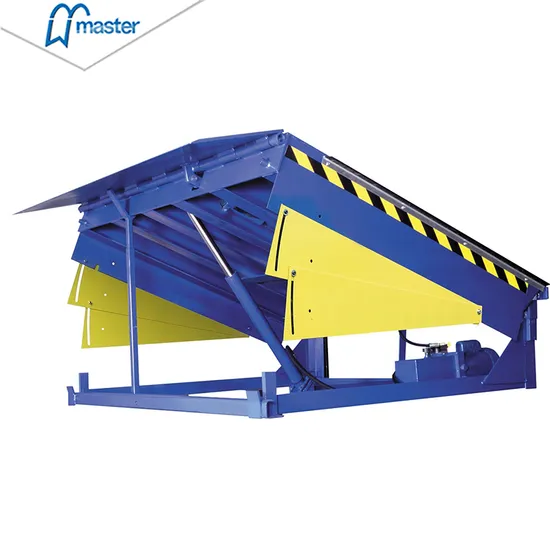

Master Well Hot Selling Good Price Automatic Lifting Table Hydraulic Dock Platform Dock Leveler for Warehouse

Product Description

Product Description
>> Electric Hydraulic Dock Leveller

Characteristics Master Well Electric Hydraulic Dock Leveller with Flap is designed to provide substantial cost savings on equipment maintenance, fragile goods damage and personnel injurise. Operation very convenient, make the loading and unloading job easy and fast, improve Logistic Efficiency; Installation and service going very way and the quality very stability and long life time using. Application Suitable for loading and unloading car frequently, different models of large enterprise, warehouse, station, wharf, warehouse logistics base, postal transportation, logistics, etc.

Material Description
Upper Plate	8 mm thickness, anti-skate steel plate
Swinging Lip	Single 16 mm thickness, 400mm length
Shaft	28mm galvanized
Foot Guard	Single galvanized,1.5 mm thickness
Support Profile	L Steel Profile,4 mm thickness
Control box	IP65, Monitor can display using times and DTCS, split control system , emergency stop
Safety system	a)self-locking b)lip emergency stop
Working Range	-300mm to 350mm
Bumpers	400 x 100 x 80mm
Loading Capacity	6000kg-15000kg

>> Structural Drawing

1. Mould	12. Seeger straight pins of the lip
2. Hydraulic control unit	13. Stright Pin body of the body
3. Upper plate	14. Right foot guard
4. Left foot guard	15. Flange fixing - upper plate cylinder
5. Control unit support	16. Upper plate rotation pivot
6. Swinging lip	17. Seeger upper plate rotation pivot
7. Left short shaft	18. Stright Pin body of the upper plate
8. Shaft fixing pins	19. Upper plate cylinder
9. Right long shaft	20. Upper plate cylinder shaft pin
10. Cylinder of the lip	21. Seeger upper plate cylinder pins
11. Pin of the lip cylinder rod

>> Spare part Details

Swinging Lip	Lip is very import part bettween truck and dock leveler Connect Part, we use the steel material from Baosteel, single plate 16mm thickness, are difference compare with Chinese double welding plate, more stronger than others.
Hinge connection	Hinge and hinge sleeve conneced with the motherboard do keel welding connection. The surface of the connecting shaft hinge by electroplating. Smooth and noise reduction.
Support profile	We use 11 pcs L profile, compare with other supplier, our quality will be better than the products use 3-4 pcs.
Hydraulic Unit	Hydraulic pump with oil tank together. Save the place and easy for maintenance
Security block	In case of accidental moving of the truck, the dock leveller will be blocked with a short stroke ( according to the applied weight).
Control Box	IP65, Monitor can display using times and DTCS, Split control system.

>> About Master Well
>> Our Workshop
Relying on our excellent business performance and R&D, we have exported to more than 120 countries and regions. We are now growing up to about 100 people work team, including International Sales Department, Domestic Sales Department, Purchase Department, Financial Department, Human Resource Department and Research and Development. We are always ready to provide the professinal service for you.
>>Our Certificate
>>FAQ
Q1: What is your MOQ?
A: No min order for dock leveller.

Q2: Can you do the full set products according to my project drawing?
A: Yes, our engineer will check your project drawings to make sure its accuracy for each different fittings and quantity.

Q3: What kinds of payment you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q4: We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q5: Do you produce other products? Do you also produce accessories?
A: Yes, we also produce Glass aluminum sectional Door,Industrial door, High speed door, Rolling shutter door, Dock leveller, Dock seal, Motor&Gate openers; We produce parts by ourselves in order to control quality and cost.

---
