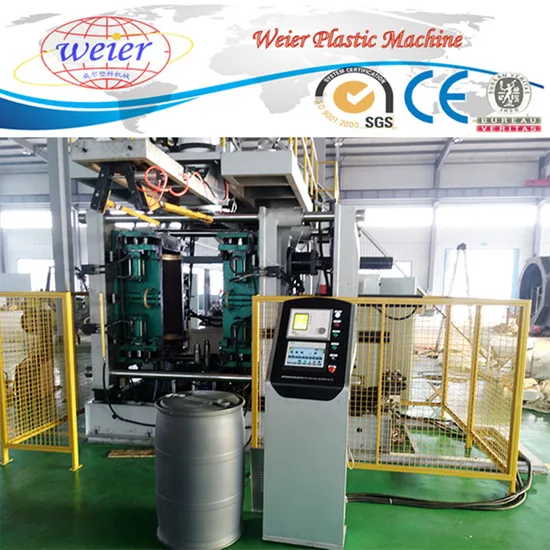

Plastic HDPE Water Tank/IBC/ Cylindrical Barrel Blow Molding Machine

Product Description

Customized Plastic HDPE Pallet/Nestable Tank/ Water Filter Tank/ Loft
Tank /IBC Tank/ Hroizontal Tank/ Traffic Barrier/ Chemical Drums Blow
Moulding Machine
Product Description
1. Appliction: plastic blow moulding machines For container and tank from 50 to 5000 liter, 1-4
layers, also can be used to produce pallet, waste bin, road barrier, septictank,and so on.
2. Manpower: 2 new workers are enough for the whole production line, even both are female, and
two weeks training are free of charge.
3. Material: HDPE, HMWHDPE.
4. Certificate: CE, ISO9001:2008.
5. Main Markets: Asia, South America, European.
PARAMETER
Specification of the 1000L Water Tank Blow Moulding Machine

No.	Item	unit	1000L double layers
1.	Screw diameter	mm	120*2
2.	Screw L/D ratio		28:1
3.	Max.plasticizing capacity	kg/h	350
4.	Screw barrel heating zone	zone	6+6
5.	Due hard zone	zone	8
6.	Volume of accumulator	kg	36*2
7.	Accumlator type		2-in-1
8.	Platen size	mm	1420*1550
9.	Space between platens	mm	1000~2500
10.	Clamping force	kn	600
11.	Mould size	mm	1200*1500
12.	Extruder motor power	kw	55+55
13.	Hydraulic system motor power	kw	90
14.	Heating power	kw	38
15.	Plastic material		HDPE
16.	product layer	layers	2
17.	Tank volume	liter	1000
18.	Machine size(L*W*H)	m	6.8*5.3*5.2
19.	Machine weight	ton	21.6

Specification of the 2000L Water Tank Blow Moulding Machine

		2000L 1 layer	2000L 2 layers	2000L 3 layers
Max. product volume	L	2000	2000	2000
Scerw diameter	MM	140	120/120	110/110
Screw L/D ratio	L/D	30:1	30:1	30:1
Screw drive power	KW	132	90/90	90/90/90
Screw heating capacity	KW	30	40	60
Screw heating zone	ZONE	9	14	21
Output	KG/H	360	480	500
Oil pump drive power	KW	45	45	45
Clamping force	KN	1400	1400	1400
Mould open space	MM	3200	3200	3200
Mould thickness	MM	1220	1220	1220
Capacity	L	70	70	70
Die head capacity	KW	400	45	45
No. of heating zone	ZONE	5	5	5
Die head material	38CRMOALA(accumulator lining piston die)
Control action	MITSUBISHI PLC
Blowing pressure	Mpa	0.6	0.6	0.6
Cooling water pressure	Mpa	0.2	0.2	0.2
Size of machine		L*W*H 1mx13mx6.2m
Weight of machine	MT	28	33	36

Specification of the 3000L Water Tank Blow Moulding Machine

System	Item	1 layer	2 layers	3 layers	4 layers
Extruder	Screw diameter(mm)	120/120	120/120	110/110/110	110/110/110/110
	L/D	28/1
	Driving motor power (kw)	90/90	90/90	75/75/75	55/55/55/55
	Heating power(kw)	90	90	110	116
	Extrusion capacity	530	530	550	550
Mould die head	Materials storage volume(L)	110
	Parision control	100 dot MOOG wall thickness controller
	Heating power(kw)	95	110	110	120
Moulding clamping system	Mould size(mm)	2100*2200
	Mould thickness range (mm)	1010-2200
	Claping force(kn)	2200
Electric control cabinet	Temperature controlling	SIEMENS tempreture control moudules
	PLC	SIEMENS
	Touching	SIEMENS
Hydraulic system	Main oil pump motor(kw)	45
	Servo motor(kw)	7.5
Basic parameter	Max. volume of product(L)	3000
	outer size L*W*H(m)	9*5*7.2	9*5*7.2	9*5*7.2	12*5*7.2
	Total power installed(kw)	330	330	374	380
	Average power consumption(kw)	210	210	260	266
	Weight(T)	53	55	62	70

PAYMENT TERMS
FOB Qingdao port, China
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
CONFIGURATION

Parison Control Thickness Control	MOOG	Japan
PLC	SEIMENS	Germany
Temperature Control Module	SEIMENS	Germany
Servo Valve & Servo Transducer	MIRAN	Italy
Inverter	SEIMENS	Germany
Hydraulic Oil Seal	DZ	Taiwan
Intermediate Relay	OMRON	Japan
Pneumatic Valve	AIRTECH	Taiwan
Hydraulic Pump & Valve	YUKEN	Japan
Pneumatic Switch & Contactor	SEIMENS	Germany
Screw Motor	SEIMENS	Germany
Reducer	GUOMAO	China

DELIVERY TIME
4 months after the down payment;

TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine
Operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in
the Buyer's factory in the periods of installing & adjusting;
The training is free of charge;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the
Machines for one week in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.

GUARANTEE
The guarantee time is one and half year after the machines normally works in the Buyer's factory,
If only the problem is cause due to quality control or any reason by the Seller. We will supply
Replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be
Listed in guarantee coverage.

---
