200 Liters Horizontal Beads Mill Impeller China

Product Description

Product Description
DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size.

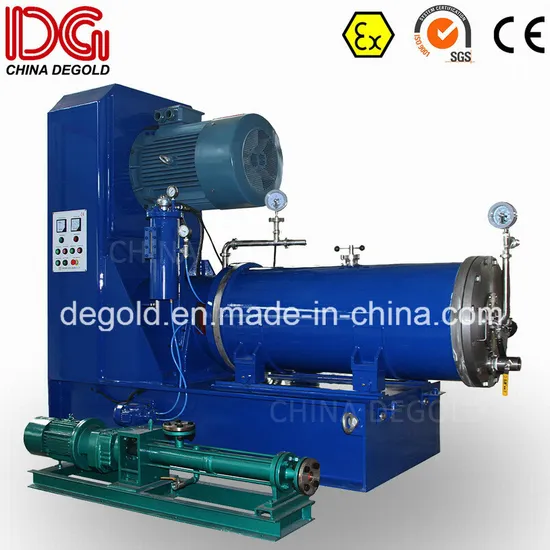

ZM200-E horizontal bead mill is 200 liters wet grinding machine for paints, inks, pigments and agrochemicals.
Because of different applications, there are different options materials inside the grinding chamber.
Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.
Applications:
Technical Data: ZM-E Series ZM20-E ZM50-E ZM100-E ZM200-E ZM300-E ZM500-E ZM1000-E Grinding chamber volume (l) Batch size (l) Drive (kW) Grinding shaft rotary speed (r/min) Length (mm) Width (mm) Height (mm) Net weight (kg) Ex proof Type Seal Type Inner Grinding Cylinder Material Grinding Disc Material Pump Type Mill Speed Adjustment Way

20	50	100	200	300	500	1000
100-500	200-1000	500-2500	1000-10000	>2000
18.5-22	37-45	55-75	75-90	90-110	160-200	315
1200	800	650	500	460	350	340
1670	1970	2750	2950	3450	3350	6650
1050	1150	1200	1200	1300	1500	1450
1565	2000	2200	2200	2250	2700	2850
750	1500	3500	3700	4700	8000	12000
Ex proof / Non Ex proof
Single Mechanical Seal / Double Mechanical Seal
SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Diaphragm pump / Gear Pump / Screw pump
With inverter / Without inverter
Note: Technical data are different if there are some customized constructions. We'd like to send you the suitable model sand mills for your production, please feel free to contact with us.
