Joborn Sawjet Tile Cutter Bridge Sawjet Router Stone Cutting Machine Milling Machinery for Granite, Marble with Italy CNC Control System

Product Description

Product Description:
JOBORN CNC Cutting Machine CNC Machinery for Natural Stone Wall Tile, 5 axis Stone Cutting Machinery for Cutting Granite/Marble/Quartz

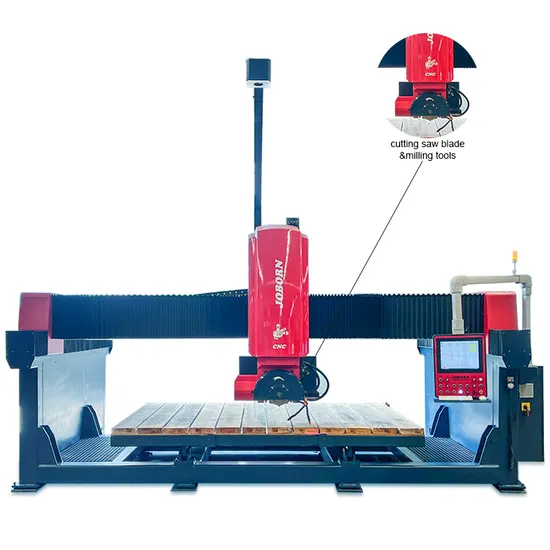

JOBORN CNC450/600/700-5 AI five-axis CNC bridge cutting machine, adopts industrial computer and is equipped with Windows system, which can realize manual programming or PC programming and other programming methods to automatically complete processing operations. Cutting, grooving, countertop processing, special-shaped processing, etc.,Standard camera function for visualization and easy operation. The tool setting function can measure the diameter of the saw blade in real-time and compensate for wear and tear.can be performed.The structure adopts an integral steel frame, which has been treated with stress relief in multiple processes, and has a stable structure, easy installation and high precision. The main motor adopts the spindle motor, which can be equipped with a milling cutter. In terms of transmission, the XY axis adopts high-precision rack and pinion transmission and high-precision linear guide rail guidance. The Z axis is driven by a ball screw and guided by a high-precision linear guide. A-axis and C-axis all use precision robot reducer. The whole machine has high positioning accuracy, repeated positioning accuracy, good cutting accuracy and high stability, and is especially suitable for the processing of high-value and large-sized granite, marble and slate.

Features:

1)5 axis linkage control with CNC control system.
2)Easy to use interface with 17" color touch-screen.
3)The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import.
4)The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability.
5)The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive.
6).Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive.
7).The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive.
8).A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision.
9)Working platform can tilt 85 degrees, easy for slabs loading.
10)Photo taking & tool setting function.
11)Milling cutter function.
12)Suction cup function.
13)Thickness measurement function.

Camera function
Sucker function(optional)
45 degree processing
Milling processing
Straightline processing

Processing Display:

Technical Parameter:

CNC450/600/700-5 AI Five Axis CNC Bridge Cutting Machine AI
Appellation	Unit	CNC450-5 AI	CNC600-5 AI	CNC700-5 AI
Max.Diameter of saw blade	mm	Φ350-450	Φ400-600	Φ450-700
Vertical Z stroke	mm	300	500	500
Main motor rotation range	degree/°	±360°
Main motor tilting range	degree/°	0~90°
Main motor rotation speed	r/min	0-6000
Power of main motor	kW	15	18.5	22
Dimension of worktable	mm	3200x2000
Worktable flipping angle	degree/°	85°
Water consumption	m³/h	3
Total power	kW	27	31	34
Dimension(LxWxH)	mm	5800x3400x3900(incl.the camera)

Processing Spot:

FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
