Small Pellet Mill Machines Cattle Feed Pellet Making Line Sales

Product Description

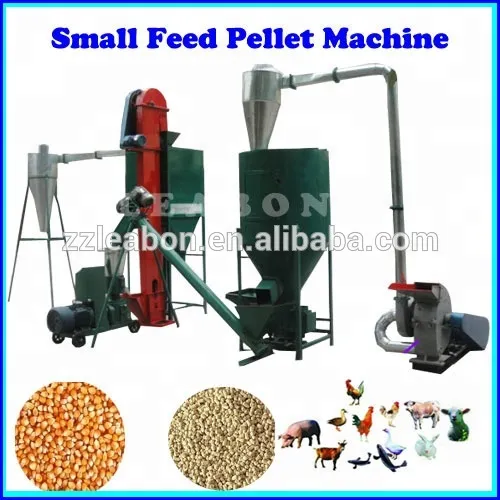

Factory Directly Sale Small Pellet Mill Machines Cattle Feed Pellet Making Line
Product Description
Brief introduction

Item	Feed Pellet Production Line
Suitable Raw Material	corn, maize, grass, grains, molasses, wheat, beans etc.
Feed application	poultry, livestock and aqua animals like: cattle, pig, sheep, shrimp, fish, pet etc.
Technical Parameters	- Capacity: 0.5t/h-2t/h - Dimensions: Designed according to specific requirements.
Features	- Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy. - Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control. - Stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency. - High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.

Spare parts
Production process Crushing---Mixing---Pelleting---Cooling--Packing
Crushing:
The task of this section is to crush the clean materials we got in the last section into powder(less than 3mm),and then deliver the powder to the next section.
Mixing
The task of this section is:
A. evenly mix different materials into complete powder feed. B. According to the certain operation order between the bin for the mixer, the mixer and the buffer bin,to ensure the continuous operation.

Model	LBM-500	LBM-750	LBM-1000	LBM-2000
Power(kw)	3	3	3	5.5
Capacity(kg/h)	500	750	1000	2000
Mixing Tim(min/batch)	30	30	30	30
Dimension(mm)	1050*1050*2500	1250*1200*1600	1500*1350*2800	1700*1650*3500
Weight(kg)	150	180	210	260

Pellet making
The task of this section is to pellet the powder feed to required sizes.

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Package size(mm)
PM-200B	7.5	200-300	240/270	100*430*950
PM-230B	11	300-400	290/320	1140*470*970
PM-260B	15	400-600	330/380	1200*520*1070
PM-300B	22	600-800	410/450	1270*520*1070
PM-360B	22	800-900	470/500	127*52*107
PM-400B	30	900-1100	630/660	147*60*115

Cooling machine

Model	Capacity(kg/h)	Power(kw)	Fan(kw)	Dimension(mm)	Weight(kg)
SCY-50	350-400	0.75	1*2.2	1580*680*945	250
SCY-70	400-600	1.1	2*2.2	2000*780*1100	380

Packing machine
It is suitable for the quantitative packaging of granules in food, grain, fodder, sugar making and chemical industry,etc

Model	DB-1A	DB-5A	DB-25A	DB-50A	DB-100A
Packing Range	0.2-1kg	1-5kg	2.5-25kg	5-50kg	10-100kg
Packing Error	0.2%F.S	0.2%F.S	0.1 %F.S	0.1 %F.S	0.1 %F.S
Division Value	2g	5g	10g	20g	20g
Packing Speed	300-500 bags/h		300-420 bags/h	≥300 bags/h
Power	AC 220V 50Hz
Air Supply	0.4-0.8 MPa
Machine Dimension	1725x620x710 (mm)	1890x620x710 (mm)	2450x650x715 (mm)	2560x650x715 (mm)	2960x730x775 (mm)
Actuator	pneumatics
Accuracy Class	X(0.2) X(0.1)

Raw Material
Corn , wheat, soybean, grass, meat,etc.
Final Pellet
Company Profile
Company Introduction
Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply feed equipments like feed crusher,mixer,pellet machine,granule crumbler,feed pellet cooler, packing and entire feed pellet production line.With rich experience for many years.
Feedback
FAQ
As different customer has different request for the feeding design, pls confirm the following details so that i can recommend the suitable plan for you:
1.What are your raw materials for making feed pellet?
2. What size and moisture of your raw material?
3.What is the capacity(kg/h) do you need?
4.What usage of final feed pellets? Feeding your own animals or sales to others?
5.Which animals do you want to feed by the final pellet?
Click Send to get the Customized scheme of animal feed making line

---
