Yarn Examine Machine

Product Description

Product Description

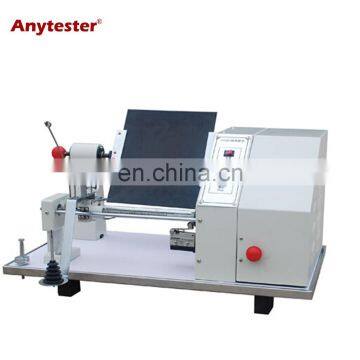

Product DescriptionHY0381 Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black board.Standard ASTM D2255GB/T 398, 5324, 9996FZ/T 32004, 32005Features1. Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test2. Various pitch to satisfy comprehensive requirements of different yarn linear density3. Two type board for selection, White board for colored yarn (HY381A)4. Equipped with alternative pre-tension5. Auto-stop function6. Adjustable winding speed7. The material of board is aluminum, it’s more durable.Specification ModelHY0381HY0381AHY0381MBlack board size220×250mm (L×W)575mm ×250mm ×160mm (L×W×W)300×225mm (L×W)Yarn winding density7, 9, 11, 13, 15, 19wraps/cm35, 40, 45, 50wraps/10cmRotational speed10~400RPM (adjustable)Power supply220V, 50Hz, 40WDimensions620×370×340mm(L×W×H)1000×370×300mm620×370×340mm(L×W×H)Weight30Kg35Kg30Kg

---
