Anon Farm Tractor Factory Rotary Tiller Pto Rotary Cultivator

Product Description

Anon Farm Tractor Factory Rotary Tiller Pto Rotary Cultivator
Product Description
Anon Farm Tractor Factory Rotary Tiller Pto Rotary Cultivator

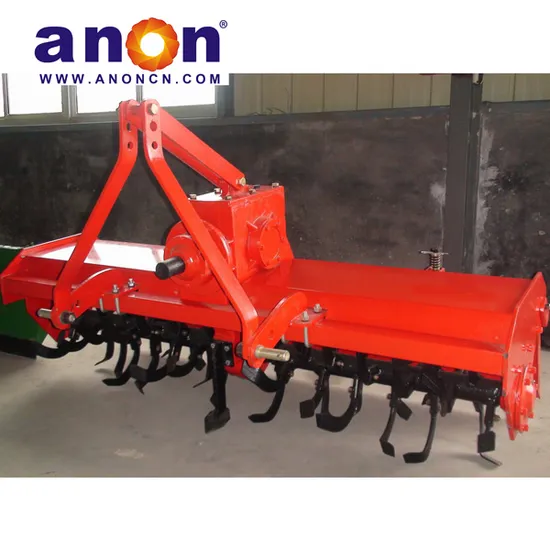

1GQN series tractor rotary tiller is adopted middle gear transmission system, mounted with the tractor by the 3 point suspension. Tractor's wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. This cultivator can be used on dry and paddy field.
1. This mounted rotary tiller covers the tractor wheel track perfectly.
2. The rotary cultivator saves labor and reduces the cost.
3. It is a tractor mounted rotary tiller for 18-80hp tractor.
4. The blade is 65Mn/60Si2Mn steel . Product Parameters
Anon Farm Tractor Factory Rotary Tiller Pto Rotary Cultivator

No.		1GN-100	1GN-125	1GN-140	1GN-150	1GN-160	1GN-180	1GN-200	1GN-220	1GN-250			1GN-300
Matched power		12-15	18-20	20-25	25-30	30-40	50-55	55-75	60-80	75-80			90
.Working width(cm)		100	125	140	150	160	180	200	220	250			300
NO. of knife		22	26	30	34	38	50	54	58	62			70
Type of knife		IT225					IT245
Total weight(kg)		200	220	230	240	251	415	430	445	460	490
		192	210	220	230	240	405	420	435	450	480
O.D.(mm)	(L)	850	900	900	900	900	1020	1020	1020	1020	1020
	(W)	1050	1450	1600	1740	1880	2056	2396	2636	2816	3316
	(H)	950	1000	1000	1000	1000	1152	1152	1152	1152	1152
working depth(cm)	Dry field	8-14		12-18			12-16
	Paddy field	10-16		14-20			14-18
Export axle rotary speed(r/min)		530-730					540	540	540-720			540-720
Knife axle rotary speed(r/min)		180-250					225	226	200	236		240
Walking speed(km/h)		1-4					2-5
Rate of working depth (%)		≥85
Soil level after worked(cm)		≤5
Vegetation covered rate (%)		≥55
The rate of crushed soil (%)		≥50
Linkage		Standard three-point mounted
