US$5,625.00-10,938.00
|
1 Piece
(MOQ)
|
Basic Info.
Lift Mechanism
Lift Chain
Carrying Capacity
Weight Level
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Product Name
Elevator Home Lift
Lifting Height
1000mm-10000mm
Color
Customers′ Requirements
Production Capacity
10000pieces/Year
Product Description
PRODUCT PRESENTATION

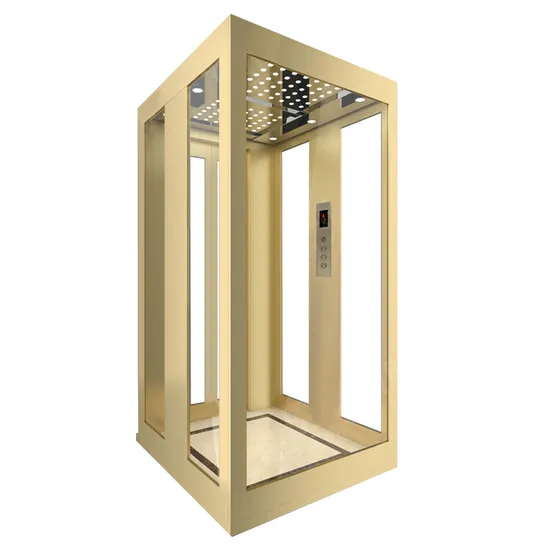

High Quality 3.5m Residential Home Elevator Lift
The domestic elevator refers to the elevator installed in the private residence and only used by a single family member.
It canalso be installed in a building that is not used by a single family as a tool for a single family to enter its residence,
but the public or other occupants in the building cannot access and use it. The rated speed of domestic elevator shall not exceed 0.4m/s,
and for the domestic elevator without door, the rated speed shall not exceed 0.3m/s, the lift car travel shall not exceed 12M,
and the rated load shall not be greater than 400kg. It is mainly divided into traction elevator, screw elevator and hydraulic elevator.
TECHNICAL PARAMETER
| Model | Lifting height(mm) | Min height(mm) | Loading capacity(kg) | Table size(mm) |
| WL0.3-1 | 1000 | 80 | 300 | 1200*900 |
| WL0.3-2 | 2000 | 80 | 300 | 1200*900 |
| WL0.3-3 | 3000 | 80 | 300 | 1200*900 |
| WL0.3-4 | 4000 | 80 | 300 | 1200*901 |
| WL0.3-5 | 5000 | 80 | 300 | 1200*900 |
| WL0.3-6 | 6000 | 80 | 300 | 1200*900 |
| WL0.3-7 | 7000 | 80 | 300 | 1200*900 |
| WL0.3-8 | 8000 | 80 | 300 | 1200*900 |
| WL0.3-9 | 9000 | 80 | 300 | 1200*900 |
| WL0.3-10 | 10000 | 80 | 300 | 1200*900 |
OUR COMPANY
Jinan Tuhe Heavy Industry Machinery Co., Ltd. is a domestic professional manufacturer of hydraulic lifting platforms,
located in the "Hometown of China's Lifting Platform Manufacturing---Jiyang". The company has a strong technical team,
has developed a variety of hydraulic lifting platform products, has made a number of technical improvements,
has a greater advantage in intelligence and reliability, and has applied for a number of technical patents,
becoming a rising star in the industry. The company has advanced equipment, strong technical force,
advanced and reasonable technological process, and complete testing methods. The company has advanced domestic assembly lines,
various production and testing equipment, and modern CNC machining. The company is strong in research and development,
which can meet the needs of product research and development such as hydraulic lifting platforms.
The company has formed a one-stop service of market research, product planning, modeling design, specialized production,
and after-sales service. The company has won the unanimous love of users with its high-quality products,
good reputation and patient and meticulous after-sales service.
>>
