Product Description 1) 5.0 Inch IPS Glove Touch Screen2) Mediatek MT6762 Octa Core Processor3) Support NFC4) Built-in Honeywell N6703 2D Scanning Module5) Support PSAM Card6) Removable 4800mAh Battery7) 8.0MP Rear Camera8) Special Charging Dock Optional9) Fingerprint/RFID/ID Card Modules Optional
| BASIC INFO |
| Model No. | UNIWA S9000 PRO |
| Operating system | Android 13 |
| Dimension | 178*78*24mm |
| Weight | 330g (include battery) |
| Material | Metal+Plastic |
| Color | Black |
| Languages | Multi-languages |
| HARDWARE |

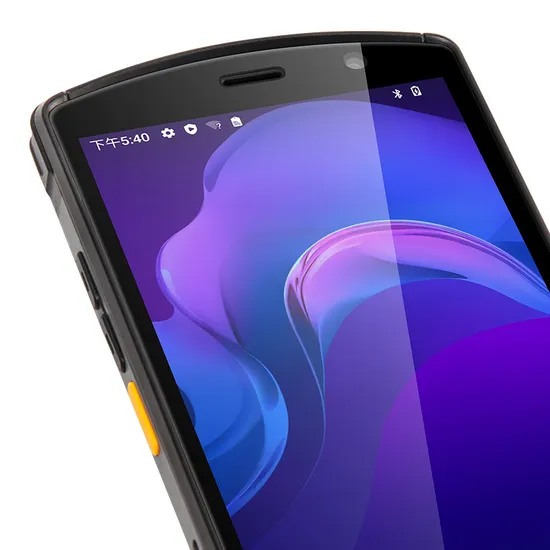

| Display | 5.0 inch IPS capacitive touch screen,1280*720px, support glove touch |
| Processor | Mediatek MT6762 octa core, up to 2.0GHz; GPU: IMG GE8320, 650MHz |
| RAM | 4GB RAM |
| ROM | 64GB ROM, support TF card up to 128GB maximally |
| Camera | Single camera: rear 8MP AF camera with flashlight, anti-shake, macro shooting (13MP optional) |
| 2D Scanning Module | Built-in Honeywell N6703 |
| Battery | Removable 3.7V/4800mAh li-polymer battery |
| Sensors | Acceleration sensor, light sensor, proximity sensor |
| Keys | Power button, volume +/-, scan button*2, F1, F2, menu / back / confirm / delete / enter key |
| NETWORK & CONNECTIVITY |
| Network Bands | 2G: GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE B1/B3/B4/B7/B8/B12/B20; TDD-LTE B38/B39/B40/B41 |
| WiFi | IEEE 802 a/b/g/n/ac, support 2.4GHz/5GHz dual-band WiFi |
| BT | V5.0 |
| GNSS | Support GPS/A-GPS/Galileo/Glonass/Beidou |
| NFC | Support, 13.56MHz |
| I/O INTERFACES |
| Micro SIM Slot | *1 |
| PSAM Slot | *2 |
| TF Card Slot | *1 |
| USB Type-C port | *1, Support OTG |
| POGO Pin | *1 |
| OPTIONAL FUNCTIONS |
| Infrared Module | Wavelength: 940nm; Operating frequency 38kHz; Communication distance > 4 meters |
| Fingerprint Collection | Optional (508 dpi, 11.3*12.4mm) |
| ID Card Identification | Reading distance 0~5cm; Reading time <1.55s; Operating frequency 13.5MHz±7kHz |
| UHF RFID Module | Operating frequency 840-960MHz, Reading distance > 1.5 meters |
| LF RFID Module | Working frequency 125K/134.2K |
| RELIABILITY |
| Waterproof | IP66 Waterproof |
| Drop-proof | 1.5 meters |
| Rolling test | 6 sides can run stably after 1000 times rolling continuously for 0.5m |
| Temperature Range | Operating: -20ºC~55ºC; Storage: -40ºC~70ºC |
| Humidity range | 5%RH~95%RH, Non-Condensing |
| ACCESSORIES |
| Power Adaptor | *1 |
| USB Cable | *1 |
| Hand Strap | *1 |
| Protective Film | *1 |
| User Manual | *1 |
| Charging Dock | Optional |
