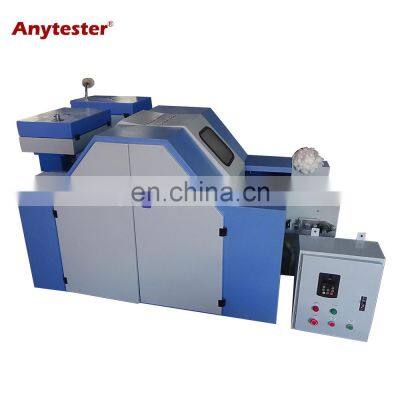

AT202 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
Specification
Model
| AT202
|
Feeding width
| 400mm
|
Working width
| 360mm
|
Cylinder diameter
| Φ450mm
|
Doffer diameter
| Φ220mm
|
Licker-in diameter
| Φ165mm
|
Working roll diameter
| Φ110mm
|
Wipe roll diameter
| Φ90mm
|
Speed
| Adjustable (Frequency converter control)
|
Max. fiber length
| about 100mm
|
Villus bucket power
| 1.5KW
|
Output capacity
| 5~10kg/h
|
Maine machine power
| AC220V/380V, 50/60Hz, 2.2KW
|
Dimension
| 1350mm*950mm*900mm (main machine)
|
900mm*900mm*1200mm (villus bucket)
|
Weight
| Approx. 800kg
|
Detailed Images
★Imported frequency converter control, high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for wool fiber or chemical fibers.
★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web
★ It can produce web or sliver according to customer's selection.
★ It is driven by a 2.2kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.
★ With full-closed protective cover.
★ Two rollers feeding.
Packing & Delivery
Packaging
|
Size(cm)
| 900mm*900mm*1200mm
|
Weight
| Approx. 800kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Item
|
T/T
| EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
| 30% T/T in advance, paid the balance before shipment
|
FOB
|
CFR(C&F)
| 30% T/T in advance,paid the balance against copy of B/L
|
CIF
|
L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
West Union
| Amount lower than 50,000usd
|
Delivery Time
| 7~10 days after receiving payment for one container
|
