Liqiang Outlet 1.2-4.5mm Copper Rbd Drawing Machine Price Good Quality

Product Description

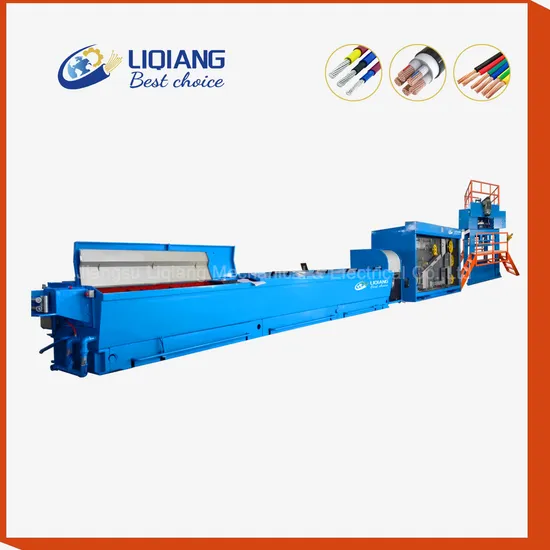

Liqiang 1.2-4.5mm Rod Breakdown Copper Wire Drawing Machine

Model	LHD450/13DT
Inlet diameter	8mm
Outlet diameter	Φ1.2 mm ~Φ4.5mm
Max. annealing speed	25m/s
Drawing motor	280KW DC
Final capstan motor	75KW DC
Diameter of drum	450mm

Max. drawing dies	13
Max.length of wire accumulator	7m
Annealing voltage	60V
Annealing current	6000A
Motor for double spooler	30KW*2
Motor for coiler	22KW
Max. size of drawing dies	Φ53*35
Installation power	510KW

Horizontal serial structure. Dual motor drive. Quick die change can be achieved.
High-precision grinding helical gear transmission. High efficiency, low noise.
Drawing capstan combined design.
Fully immersed lubrication cooling to ensure the quality of the wire.
Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Liqiang has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximum value for the community as well as for clients.
Q: Are you a manufacturer or trade company? A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime. Q:Where is your factory located? A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine? A: More than 20 years. We have our own technology develop department and testing department. Q: Can you send your engineer to my country for machine installation, worker training? A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced. Q: What's the guarantee time for your machines? A: 12 months since the date of dispatching from our factory. Q: Can you export and supply the customs clearance documents we need? A: We have much experience for exporting. We will arrange all the customs clearances in advance for you. If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable price

---
