US$7,500.00-12,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Material
Marble
Engraving Head Speed Adjustability
Wide Adjustable Range
Application
Advertising, Stone Industry
Table
T-Slot Steel Table and Water Tank
Ball Screw
High Precision
Transport Package
Plywood Box
Specification
2500mm*1300mm
Production Capacity
500 Sets/ Year
Product Description

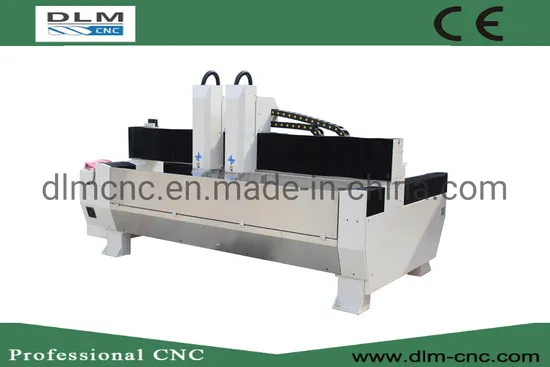

CNC Marble Engraving and Cutting Machine DLM-2513-2
Applicable industries:
Stone working: engraving various granite, bluestone, marble, gritstone, soapstone ceramic tile and so on etc.
Marble cnc carving machine for Metal working also: can engarve on various colorful metals like aluminum, brass and so on.
Technical Parameter:
| Description | Parameter |
| X,Y working area | 2500mm*1300mm |
| Z working area | 200mm |
| Table design | heavy duty |
| Resolution | 0.05mm |
| Lathe structure | Seamless welded steel structure |
| X,Y structure | Pack and pinion transmission, Linear orbit |
| Z structure | Imported ball screw |
| Max. idling speed | 40m/min |
| Spindle motor power | 5.5Kw/ 7.5KW / water cooling * 2 sets |
| Spindle rotate speed | 0-24000r/min |
| Working voltage | AC380V/50Hz |
| Working mode | Servo motor |
| Driver | Servo |
| Command | G code, HPGL, U00, mmg, plt |
| Operating system | Taiwan Syntec |
| Interface | USB |
| Diameter of cutter | φ3.175 , φ6 φ, 12.7mm |
| Dust-collect function | Yes |
| Working-holding | By clamp |
| Net weight | 3000KG |
