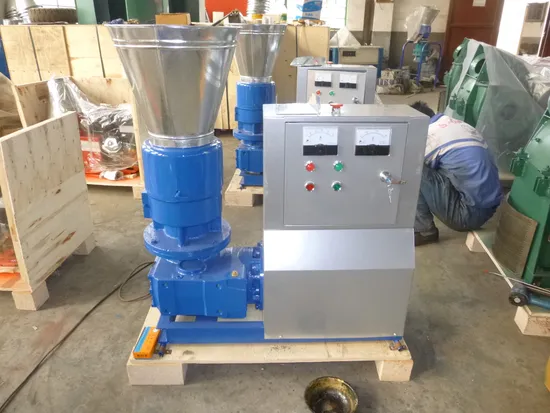

100-1400 Kg/Hour 380V Biomass Mini Pellet Mill Machines Price Wood Pelletizer Rice Mill Machine Homemade Pellet Machine

Product Description

Packaging & Delivery
Package Size
100.00cm * 45.00cm * 98.00cm
Package Gross Weight
230.000kg
Product Description
Product description
Our pellet press machine are devided into the die rotating pellet press machine and the roller rotating pellet press machine. Our die rotating pellet press machine can press both the feed pellets and the wood sawdust pellets, just the capacity of making wood sawdust pellets is lower than feed pellets. Our roller rotating pellet press machine are the special design for making wood sawdust pellets. Our flat die pellet press machine can be powered by electrical motor, diesel enginen, gasoline engine and tractor. TOPS-A series pellet press machine are driven by the diesel engine or gasoline. TOPS-B and TOPS-C series pellet press machine are driven by the electrical motor and the TOPS-P pellet press machine are driven by tractor. Technical Parameters of the Die Rotating Pellet Press Machine

Model	Power	Voltage V/50Hz	Die Diameter	Die Hole Specification	Saw Dust Capacity	Feed Capacity
TOPS120B&C	2.2KW	220V	120mm	2.5-10mm	20-60kg/h	60-100kg/h
TOPS150B&C	4KW	380V	150mm	2.5-10mm	50-90kg/h	90-120kg/h
TOPS200B&C	7.5KW	380V	200mm	2.5-10mm	110-140kg/h	200-300kg/h
TOPS230B&C	11KW	380V	230mm	2.5-10mm	150-190kg/h	300-400kg/h
TOPS260B&C	15KW	380V	260mm	2.5-10mm	200-280kg/h	400-600kg/h
TOPS300B&C	22KW	380V	300mm	2.5-10mm	300-360kg/h	600-800kg/h
TOPS360C	22KW	380V	335mm	2.5-10mm	350-400kg/h	800-1000kg/h
TOPS400C	30KW	380V	395mm	2.5-10mm	400-500kg/h	1000-1300kg/h

Certifications

Pellet process steps in photo
Photos for biomass pellet machine

---
