Heavy Duty Conventional Beam Gantry Type Milling Machine

Product Description

Product Description

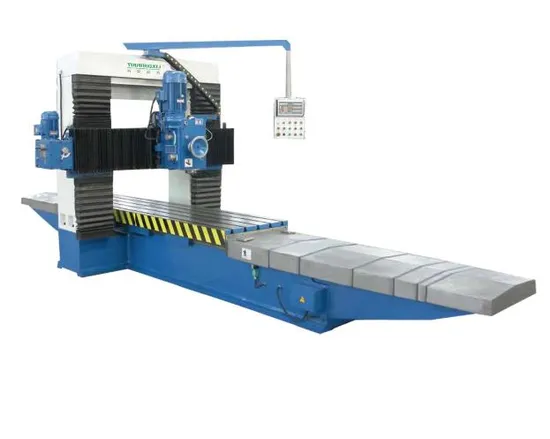

Tengzhou Xili Manufacturer Milling Machine X2010

High-quality milling machines with a sturdy construction.

Detailed Photos
Specification

Specification		Unit	X2010	X2012	X2014
Max.outline	Length	mm	2000/3000/4000
	width	mm	1300	1400	1800
	width	mm	1000	1000/1200
Distance between columns		mm	1440	1600	1920
Table zise	Length		2000/3000/4000
	width		1000	1250
Table feeding speed	Feed		20-360	25-450
	Rapid travel		1050	1300
Spindle taper			7:24 ISO50
Spindle speed step		r/min	82-505
Swivel angle of milling head			±35°
Along the cross rail		mm	65/320/890
Side milling head		mm	50/265/730
Power of spindle motor		kw	7.5
Power of table motor		kw	4/5.5/7.5	5.5/7.5
overall size	Length	mm	4550/7000/9000	5000/7000/9000
	width	mm	3200	3550
	Height	mm	2550	2950/3150

Certifications
We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.

Packaging & Shipping
standard export packing:
plywood case with steel pallet, inside with plastic bag on machine.
Steel pallet:
1.Strong carring capacity.
2.Eco-friendly and recyclable.
3.Standard export package, fumigation-free.
4.Flexible and convenient for transportation.
Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 300employees.Products include:Gantry machining center.VMC machining center,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-typeetc.)
The main products have developed to 7 series in recent years: CNC Planer-type machining center CNC vertical machining center,CNC horizontal machining center series,CNC milling machine series,knee-type milling machine series,planer-type milling machine series,single-face milling machine series,vertical drilling machine series,drilling and milling machine series. Altogether there are more 40 specifications. Some products have national patents. In 2002, we passed the ISO9001 quality guarantee system certification, and got the certificate of CE in 2007. lt was awarded Shandong high technology company in 2010.
We are always pursuing the following notions of service and management: "customers first, quality first", "active improvement, winning through innovation", "credit is the basis".
Focusing on talents, we create the future relying on the science and technologies.
Focusing on quality, we rely on the customers to get common development.
After Sales Service
We will supply enough spare parts and accessories with our Manual Mill Milling Machine when shipment. Within one year after receiving our manual mill milling machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
FAQ

1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.

---
