Manual Fireworks Paper Core Tube Making Cutting Packaging Machine for Toilet Paper

US$18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QH
Paper Core Usage
Paintings Packaging
Tube Machine Type
Bending Machine
Gumming Type
Double Side
Layers of Roll Paper
3-25
Reelpipe Speed
0-25m/Min
Wall Thickness of Paper Tube
1-15mm
Certification
CE
Condition
New
After-sales Service
Service Machinery Overseas
Name
Paper Tube Making Machine
Key
Paper Tube
Voltage
220V/380V/440V
Speed
0-25m/Min
Power
15kw
Model
Four Heads
Transport Package
Film Packaging
Specification
200
Trademark
QH pack
Origin
Cangzhou City, Hebei Province
HS Code
84393000

Product Description

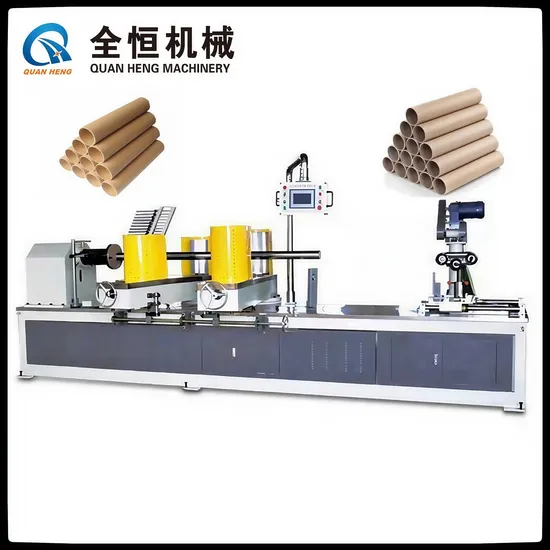

QHTB200-PAPER CORE TUBE MAKING MACHINE
Technical Parameters Number of paper layers 3-30layers Paper tube diameter 20-200(mm) Paper tube thickness 1-25(mm) Coil speed 0-20(m/min) Fixed length mode Numerical control (optical control) Winding machine head No resistance four heads Cutting mode Automatic cutting and cutting of single circular knife Fixing mode of coiling mold Flanged top tightened Gluing Type Double-sided Glue Control mode frequency control Input voltage Optional Operator 1-3 persons
PLC controller Professional products
Interface Professional products
Program version CX-P 9.04
Frequency converter Amp products
Intermediate relay / contactor chint
Signal element (close to switch, etc.) Double Folin brand / Shanghai worker
Cylinder element Cable - day Olympic brand
Synchronous control X axle servo ball screw
Synchronous tracking pipe cutting system European servomotor
Cutting and lifting Air movement
Push the button to stop Jiangyin Yangtze River brand
Size (millimeter)
Mainframe size: length * width * height 2900mm*1700mm*1900mm
Area: length * width 20000mm*9000mm
Hub diameter 294mm
Hub height 360mm430mm
Minimum pitch 1000mm
Maximum wheelbase 1250mm
Total weight 5600kg
