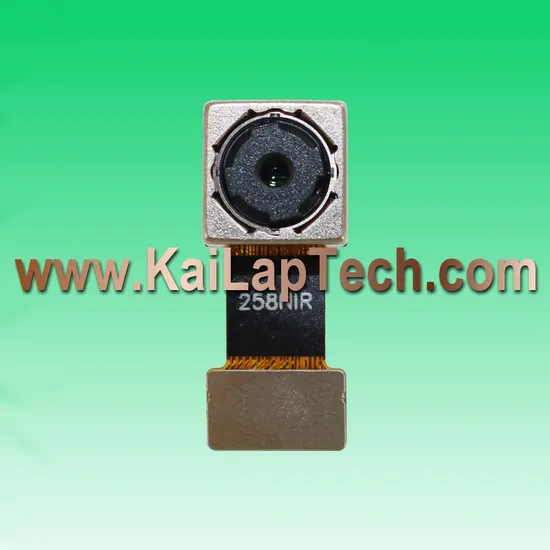

Klt-Z7ma-Imx258 V1.0 Nir WiFi Camera 13MP Imx258 Mipi Interface No IR Filter Auto Focus Camera Module

Product Description

13MP IMX258 MIPI Interface No IR Filter Auto Focus Camera Module
Camera Module No. KLT-Z7MA-IMX258 V1.0 NIR

Camera Module No.	KLT-Z7MA-IMX258 V1.0 NIR
Resolution	13MP
Image Sensor	IMX258
Sensor Type	1/3.06"
Pixel Size	1.12 um x 1.12 um
EFL	3.81 mm
F.NO	2.20
Pixel	4224 x 3136
View Angle	74.4°(DFOV) 62.7°(HFOV) 48.7°(VFOV)
Lens Dimensions	8.50 x 8.50 x 5.55 mm
Module Size	20.85 x 8.50 mm
Module Type	Auto Focus, No IR Filter Lens
Interface	MIPI
Auto Focus VCM Driver IC	DW9763
Lens Model	KLT-LENS-50013A1
Lens Type	650nm IR Cut
Operating Temperature	-20°C to +70°C
Mating Connector	AXE530124
