2025 New Design Automatic Waste Plastic PE PP BOPP LDPE LLDPE HDPE PS EPS XPS EVA Film Bag Pelletizing Recycling Granulating Machine Line

Product Description

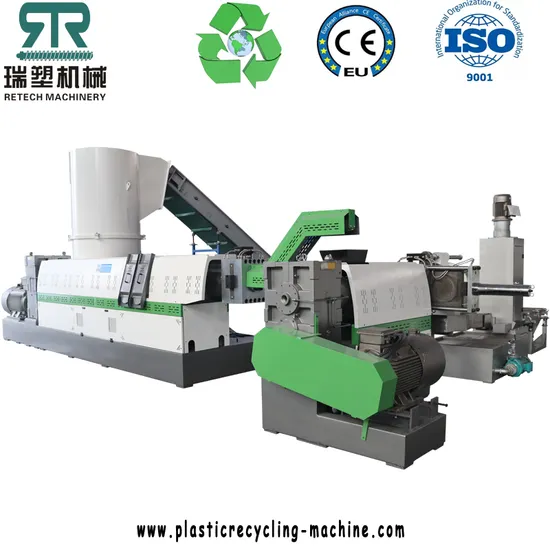

2025 New Design Automatic Waste Plastic PE/PP/BOPP/LDPE/LLDPE/HDPE/PS/EPS/XPS/EVA Film Pelletizing Recycling Machine Line
Product Description
RCSJ series LDPE LLDPE HDPE BOPP film pelletizing machine is designed and manufacture by our company,it combine the latest new Euro recycling tech which is with function of cutting/compactor the plastic film in first step,the specially designed structure screw ensure the best extrusion and vacuum degassing performance.
Application:
PE/LDPE/LLDPE/HDPE/BOPP film
PP yarn/PP woven bag/PP jumbo bag/PP silk/PP fiber
PS/EPS/XPS/EPE foam
Detailed Photos
Simple in Design, Flexible in Operation - For blown film, T-shirt bag, garbage bag, supermarket bag producers and professional recyclers.
- Able to process PE (HDPE, LDPE, LLDPE), PP flexible packaging material with printed and non-printed area.
- Suitable for both post-consumer and post-industrial plastic waste.
Belt conveyor
As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor
Function:
to feeding material into compactor
Cutter compactor
Crushes, dries and compacts the material which enables a fast and stable feeding from the compactor directly into the extruder.
Function:
The rotatory blades of compactor will cut up incoming scraps. Frictional heating caused by high speed rotatory blades will heat and shrinking below agglomerating point
Main extruder
With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
Function:
A specialized single screw extruder applied to gently melt the pre-compacted material.
Filtration System:
Large filtration area
Reducing screen changing frequency
Laser filter without manual as optional

Function:
To stop impurities by 80-120 mesh,put multiple layers
Water-ring Pelletizing system
Adjust the pelletizer speed automatically based on the pressure of Die head, and achieve the uniform final pellets size.
Function:
Pneumatic blade clamping device: knife of pelletizing system compact with Die head automatically by pneumatic system
Electrical controlling system
For electrical controlling of the entire system. All electrical units mounted in a steel cabinet. Press button switched with light indicators; All heaters equip with Ammeters; Safety interlock principle applied in the system;
Function:
to control the production line by PLC system

Product Parameters

Model	Diameter Screw	L/D	Power	Capacity PE	Capacity PP
RCSJ85-100	85/100mm	33:1	0.4kw/kg	160-220kg/h	120-200kg/h
RCSJ100-120	100/120mm	33:1	0.4kw/kg	260-320kg/h	220-250kg/h
RCSJ130-150	130/150mm	33:1	0.4kw/kg	450-550kg/h	400-450kg/h
RCSJ160-180	160/180mm	30:1	0.4kw/kg	650-750kg/h	500-600kg/h
RCSJ180-200	180/200mm	28:1	0.4kw/kg	900-1000kg/h	650-800kg/h

Certifications
Packaging & Shipping

Company Profile
Our Advantages
