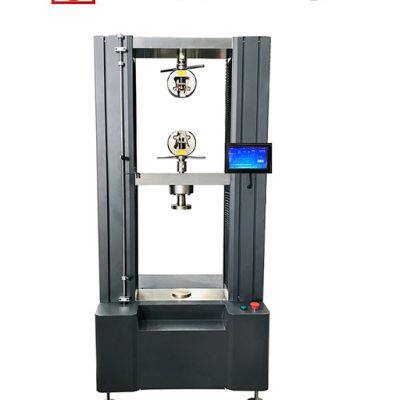

Model LDW Series Digital Display Touch Screen Electromechanical Universal Testing Machine

Product Description

Product Description
Application:
This kind of machine is widely used in metallurgy, machinery, building engineering and materials, automobile, and shipping industry, college, university, and quality assessment department, which can test the mechanical performance of metal, plastic, rubber, spring, all kinds of rope materials and other materials. It can meet global standards, such as ASTM, DIN, BS, JIS, GB, etc. It uses touch screen LCD controller to control machine.
LDW Series Main Specifications:
Model
LDW-300
LDW-200
LDW-100
LDW-50
LDW-20
LDW-10
Max. Load
300KN
200KN
100KN
50KN
20KN
10KN
Load accuracy
≤±1%
Load range
2%-100% of full scale
Test speed
0.1-250mm/min
0.1-500mm/min
0.1-500mm/min
Speed accuracy
≤±1%
Disp. resolution
0.01mm
Effective test width
570mm
500mm
440mm
Effective tensile space
600mm
600mm
Effective comp. space
700mm
700mm
Dimension
1130×650×2550mm
840×565×1750mm
830×565×1660mm
Power supply
380V, 3ph, 4/3KW
220V, 1ph, 1.5KW
220V, 1ph, 1KW
Weight
1800KG
720KG
460KG
Grips
Wedge type, plate type and other grips as consumer’s demand
Load frame type
Double column
