60kVA Three Phase Servo Automatic Voltage Stabilizer 380V 400V 415V

Product Details

Product Description

Product Description

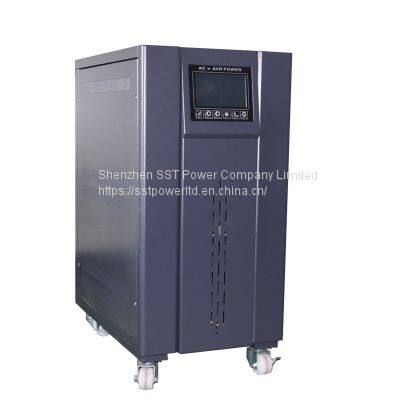

60kVA Three Phase Servo Automatic Voltage Stabilizer 380V 400V 415V
Product ： Three Phase Servo Automatic Voltage Stabilizer
Model ： SVC-10KVA-60KVA
Input Voltage ： 3 x 380VAC (3Phase + N)(208V,220V, 230V, 400V, 415V option)
Input Range ： ±15%~40%(Can be customized)
Output Voltage ： 3 x 380VAC (3Phase + N)(208V,220V, 230V, 400V, 415V option)
Output Accuracy：±2%/±3%/±5%( Can be adjusted)
Phase ： Three Phase
1. General
SVC three phase 380V Servo Automatic AC Voltage Stabilizer can automatically maintain the stability of the output voltage when the voltage fluctuation of the power supply network or the load fluctuation. SVC series voltage stabilizer produced by our company have the advantages of high efficiency, no waveform distortion, and stable voltage adjustment, which are well received by users.
SVC three-phase 380V voltage stabilizer is suitable for a wide range of loads, can withstand instantaneous overload, and can work continuously for a long time. The mains voltage and bypass can be switched according the real situation, and it is equipped with automatic protection devices for overvoltage, overcurrent, phase sequence, and mechanical failure.
2. Application
This product is widely used for national defense, mechanical processing equipment, transportation, communications, scientific research, industry, transportation, railways, large electromechanical equipment, metal processing equipment, CNC machine tools, printing machines, laser cutting machines, production lines, construction engineering equipment, elevators, medical equipment, Embroidery textile equipment, air-conditioning, radio and television, household appliances, lighting, new energy and other power-consuming occasions that need to be stabilized.
3.Environment
AVR-D series voltage stabilizer should be used indoors. For outdoor use, customization is available, please contact our salesperson.
Ambient temperature: -15°C~+40°C
Relative humidity; ≤90%
Altitude: ≤1000m
No vibration or bumps in the installation site
There is no gas, steam, chemically deposited dust, dirt and other explosive and corrosive media that seriously affect the voltage and insulation.
4. Functions
●Independent Phase Control
Independent phase voltage sensing and control to ensure the individual phase voltages remain stable - regardless of load unbalance .
●Inbuilt High Overload Capability
Ideal for loads with an inherent initial high current draw on start up.
●Over / Low Voltage Protection
Ability to automatically shutdown the Voltage Stabilizer in the event of the input supply voltage going outside pre-set input voltage parameters.
●Manual Bypass Protection
Transfer the voltage stabilizer to bypass operation in the event of a problem.
●Digital LCD Monitoring Panel
Displaying real time operational status, key system readings. Simple, Clear and Accurate.
●Phase Failure Protection
No output in the event of phase failure.

---
