Vertical Universal Milling Machine Dro Knee Type Metal Milling Machine

US$45,000.00-62,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X718
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Milling Machine
X718 Bed Type Milling Machine with Table Size 2800
Table Size
2800X500mm
Table Travel
2500X1020mm
Max.Loading Weight
5000kgs
Fast Feed X,Y
22.4 -560 mm/Min
Z Axis Feeding
11.2-280 mm/Min
Spindle Speed Range
36-1340 Rpm
Main Motor
7.5kw
Spindle Taper
ISO50
T-Slot Width
4-20-100
Spindle Step
12
Funcition
Heavy Duty Cutting,Milling Machine, Grinding
Distance From Spindle to Guideway
900mm
Machine
Universal Milling Machine
Dro
Sino Brand
Transport Package
3020X3000X3000mm
Specification
9000kgs
Trademark
tokmc
Origin
China
HS Code
84595900
Production Capacity
100 Set/Year

Product Description

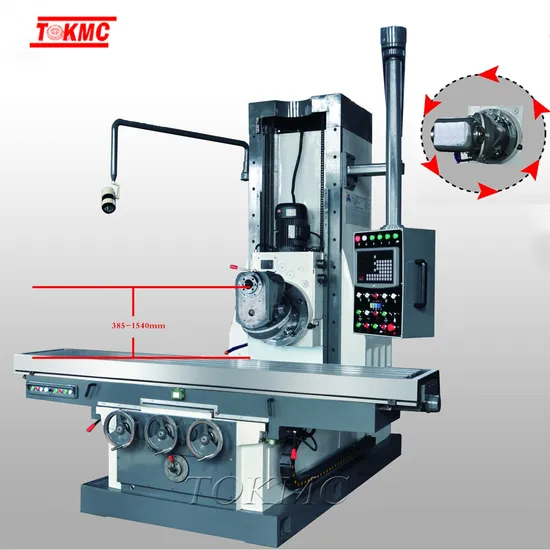

X718 Bed type Milling Machine with table size 2800x500mm
Feature :
- heavy duty cutting,It can bear 5 tons on worktable
-X,Y ,Z axis travel 2500mmx1020mmx1090mm
-universal swivel head 360 degree, processing Multi-angle, multi-faceted workpiece
-Good stability, easy to operate
specifications units X718
table size mm 2800×500
table travel(X,Y) mm 2500×1020
Distance from spindle to table surface height mm 385-1540
Distance spindle to table surface lower mm 0-1160
Distance spindle to table surface vertical head mm 0-1090
number/width/distance of T-slot mm 4-20-100
max.load of table kg 5000
Feed speed mm/min 22.4-560
Rapid feed speed mm/min 1650
Z axis feeding mm/min 11.2-280
Z speech axis feeding mm/min 825
Spindle taper 7:24 ISO50
Spindle speed range rpm 36-1340
Spindle speed step steps 12
Distance from spindle axis to column guideway mm 900
Spindle motor power kw 7.5
Overall dimension mm 3020×3000×3000
Machine weight kg 9000
