Cloud Core Router Mikrotik Ccr1009-7g-1c-1s+PC

Product Description

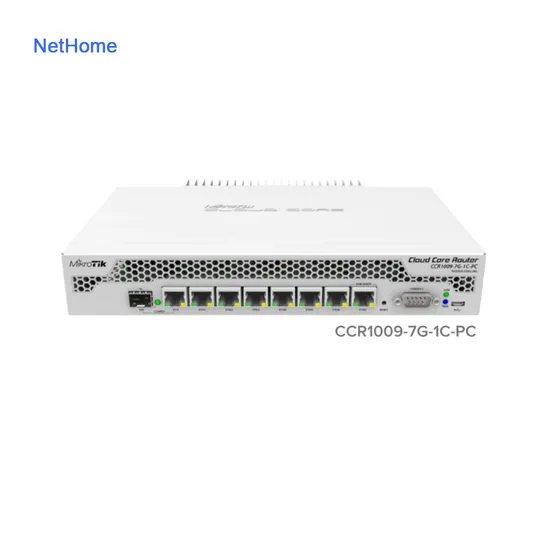

Cloud Core Router MikroTik CCR1009-7G-1C-1S+PC
Introduction:

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.
Important changes
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.
Product Features 1. High-Performance Hardware Processor: Annapurna Labs Alpine AL324 quad-core ARMv8-A CPU running at 1.7 GHz. RAM: 4 GB DDR4 ECC for stability and efficient multitasking. Storage: 128 MB NAND storage for configuration and RouterOS operations. 2. Versatile Connectivity 16 Gigabit Ethernet Ports: Perfect for a wide range of wired networking needs. 2 SFP+ Ports: High-speed 10 Gbps fiber interfaces for uplinks or connections to other high-speed devices. 3. Networking Capabilities Routing Capacity: Handles up to 36 Gbps of throughput in real-world scenarios. Hardware Acceleration: Ensures faster processing of tasks such as Layer 3 forwarding and NAT. Advanced Networking Features: Includes MPLS, BGP, OSPF, VLANs, and other protocols for complex setups. 4. Robust Software with MikroTik RouterOS License Level 6: Offers access to the full suite of RouterOS features. Firewall and Security: Advanced tools to protect your network. Traffic Management: QoS, bandwidth shaping, and monitoring tools. 5. Reliability and Efficiency Passive Cooling: Operates quietly, suitable for office and data center environments. Redundant Power Options: Dual DC inputs for increased reliability. Compact Design: Fits seamlessly into rackmount setups or standalone applications. 6. Energy Efficient Low Power Consumption: Efficiently designed to reduce energy costs without compromising performance. The MikroTik CCR2004-16G-2S+ is ideal for ISPs, data centers, and enterprises requiring high throughput, versatile connectivity, and advanced networking features in a compact, reliable package.

Technical Specifications

Specifications
Details
Product code	CCR2004-16G-2S+
Architecture	ARM 64bit
CPU	AL32400
CPU core count	4
CPU nominal frequency	1700 MHz
Switch chip model	88E6191X
Dimensions	443 x 210 x 44 mm
RouterOS license	6
Operating System	RouterOS v7
Size of RAM	4 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	'-20~60ºC
IPsec hardware acceleration	Yes
Powering
Details
Number of AC inputs	2
AC input range	100-240
Number of PSU slots	2
Frequency (Hz)	50-60
Max power consumption	48 W
Max power consumption without attachments	35 W
Cooling type	2 fans
Ethernet
Details
10/100/1000 Ethernet ports	16
Fiber
Details
SFP+ ports	2
Peripherals
Details
Serial console port	RJ45
Other
Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Certification & Approvals
Details
Certification	CE, EAC, ROHS
IP	IP20
