High Precision Horizontal CNC Mini Lathe Machine H32 China Cheap CNC Lathe Machine

Product Description

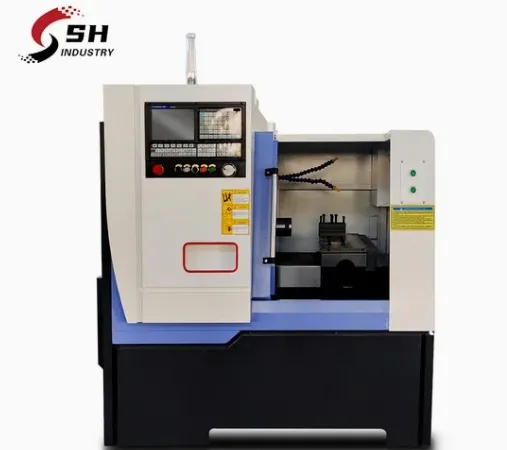

High Precision Horizontal CNC Mini Lathe Machine H32 China Cheap CNC Lathe Machine
Product Description
CNC Lathe Use:
This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface, can satisfy the ferrous and non ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace and other industries to high efficiency, large quantity and high precision of parts processing. Machining precision can reach level IT6.
Technical Specifications:

Specification	Unit	H32
Max.swing over bed	mm	320
Max.swing over cross slide	mm	70
Max. Processing length	mm	280
Max. Bar capacity	mm	40
Max.processing diameter of plate type of workpiece	mm	320
Spindle nose type		A2-5
Spindle bore	mm	48
Spindle speed range	r/min	50-4000
Main motor power	kw	3.7
Chuck form		Hydraulic collet/ chuck
Chuck size	inch	6
X axis rapid traverse	M/min	24
Z axis rapid traverse	M/min	24
X axis travel	mm	280
Z axis travel	mm	330
Guide rail type		Linear rail
Tool post type		Gang type tool post
Tool shank size	mm	20x20/dia.25
Total rated power	kw	6
Total rated current	A	13
Machine weight	kg	1400
Machine dimension	mm	1650X1350X1700

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province. 2: What about your warranty? A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free 3: How do you offer after-sale service? A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems 4. What is your standard package? A: Our package is export standard plywood case with pallet. 5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
