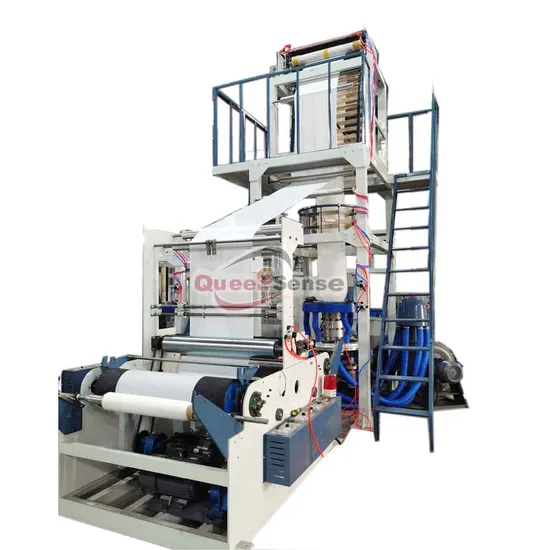

QS-B60 Film Blowing Machine 1000 mm Width Biodegradable Film Blowing Machine

Product Description

PRODUCT INFORMATION
ModelQS-B50/55/60/65
Product NameHD&LD Rotary Died Head Film Blowing MachinePE heat-shrinkable film blowing machine
Film Width100-1200mm
Introduction:
This machine is used for blowing HDPE LDPE LLDPE film. Products are widely used in compound film, packaging film, etc. The main motor is equipped with inverter to adjust speed and increase stability. Besides, this machine can save 30% electricity compared with normal machines. The screws & barrels are made in 38 chrome molybdenum aluminium with Nitriding treatment. There traction unit is flexible with the help of up and down traction, making a better cooling effect in
blowing film.

Main Technical Parameters

Model	QS-B50	QS-B55	QS-B60	QS-B65
Suitable material	HDPE/LDPE/LLDPE/Biodegradable materials
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Film thickness	0.008-0.1mm
Capacity	50kg/h	60kg/h	70kg/h	80kg/h
Screw diameter	50mm	55mm	60mm	65mm
Main motor	15kw	18.5kw	22kw	30kw
Die size	60mm/120mm	80mm/150mm	100mm/220mm	120mm/250mm
Type of die head	Rotary die head
Air blower	1.5kw	2.2kw	3kw	4kw
Roller width	700mm	900mm	1100mm	1300mm
Take up motor	1.5kw	1.5kw	1.5kw	1.5kw
Type of rewinder	Single/Double rewinder
Rewinder motor	1.5kw	1.5kw	1.5kw	1.5kw
Machine size	4.2*1.8*4.3m	4.8*2.0*4.5m	5.5*2.2*4.8m	5.8*2.5*5.0m
Machine weight	1.5 Ton	2 Ton	2.5 Ton	3 Ton
Voltage	Three phase,380V/50HZ (Can be customized)

TEAM AND WORK:


PACKING:

EXHIBITION:


FAQ:

A. When your company was found?
B. Our company was found on 2010 , our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.
A. When your company was found?
B. Our company was found on 2010 , our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia .

---
