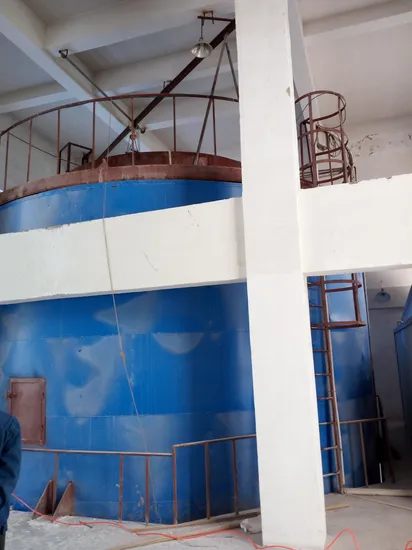

Complete Equipment of Sodium Silicate Instant Sodium Silicate Drying System

Product Description

Instant foam alkali is also called instant sodium silicate and hydrated sodium silicate. The product has white appearance, powder shape and good uniformity. It is very convenient to transport, store and use. It is widely used in metallurgy, electric power, petrochemical and building materials industry. It can be used as binder, industrial cleaning agent, preservative, quick drying agent and strengthening agent in soap making, acid resistant cement, fine ceramic industry and precision casting industry. The instant powdered sodium silicate product also has all the properties and applications of liquid foam alkali. The molecular formula of instant powdered effervescent alkali is Na2O · nsio2 · nH2O, and the formula weight is generally 280-350. The process is processed by chemical processing, filtration, mold adjustment, spray drying and so on.
Main technical parameters
Inlet air temperature: 250-300 ºC (based on 250 ºC)
Design working days: 300 days / year 24 hours / day
Outlet air temperature: 85-100 ºC (based on 100 ºC)
Product output: 10000 t / a 35 t / D 1458.3kg/h
Water evaporation: 2006.1kg/h
Initial solid content of slurry: 40%
Injection volume: 3464.4kg/h
Air volume for drying: 25867.46m3/h
Heat consumption for drying: 3 million kcal / h
Moisture content of dry powder: w = 3-5% (based on 5%)

---
