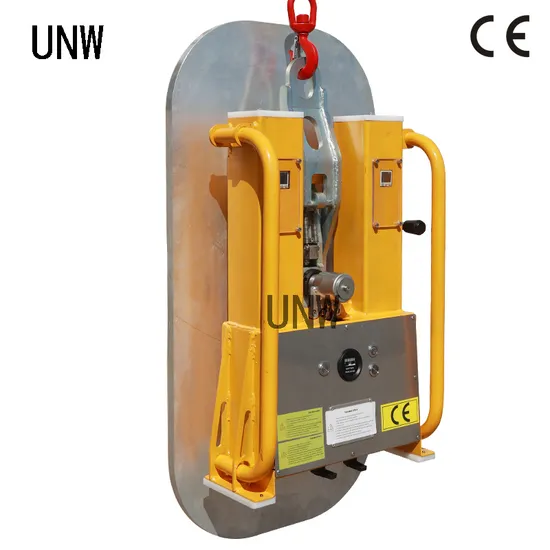

500kg Dual Circuit Electric Vacuum Suction Cup for Wooden Panels Glass Sheet

Product Description

Vacuum Insulating Glass Tool Single Suction Cup 600kg Product Description
UNW Brand Small Vacuum lifting machine is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.
Features and Advantages:1. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric2. Both ends of the suction cup holder are retractable, suitable for occasions with large size changes3. Imported oil-free vacuum pump, valve4. Efficient, safe, fast and labor-saving5. Accumulator and pressure detection ensure safety6. Suction cup position adjustable and can be closed manually7.Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job.
Product Parameters

Model No.	unit	BGL-500B	BGL-750B	BGL-D250B	BGL-D350B
Lifting Capacity	kg	500	750	250	375
Net Weight	kg	56	66	62	72
Pad Size	mm	800*400	1000*500	800*400	1000*500
Thickness	mm	250	250	250	250
Vacuum circuit(s)	/	Single-circuit	Single-circuit	Dual-circuit	Dual-circuit
Packing Size	mm	850*450*400	1050*550*400	850*450*400	1050*550*400
Battery	V/Ah	12/12	12/12	12/12	12/12
Charger	V/A	12/3	12/3	12/3	12/3
Power	V	110/220	110/220	110/220	110/220

Detailed Photos
Application
UNW Brand Small Vacuum lifting machine is widely used in glass processing, glass loading and unloading, glass curtain wall, plastic sheet, sandwich panel, composite panel, steel plate, aluminum plate, copper plate, stone and other industries; it is suitable for various workpieces with relatively flat and dense surfaces and relatively regular shapes
Factory
Shandong Unid Intelligent Technology Co., Ltd. is a leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platform with more than 10-years-experience, including Intelligent glazing robot, suction cups vacuum glass lifters, sandwich panels vacuum lifters, metal sheet vacuum lifters and other single-circuit and dual-circuit vacuum lifters.
We always keep "To make Construction easier,safer and more efficient" in Mind, Serving for customers mainly from Europe, North America, South America and so on.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
After Sales Service
1. Spare parts provided freely within quality warranty.2. Providing user's manual.3. Liftetime techinique support.4. 24 hours telephone and Internet service
FAQ

Questions	Answers
1. Are you a factory or trading company?	Yes, we're factory with over 10 years exporting experience.
2. What's the MOQ?	1 UNIT
3. Do you offer OEM&ODM service?	Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc.
4. What's the quality warranty?	12 months. Spare parts provided freely within quality warranty.
5. How can I get the after-sales service?	We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service
6. What's your QA&QC policy?	100% Test before shipping.
