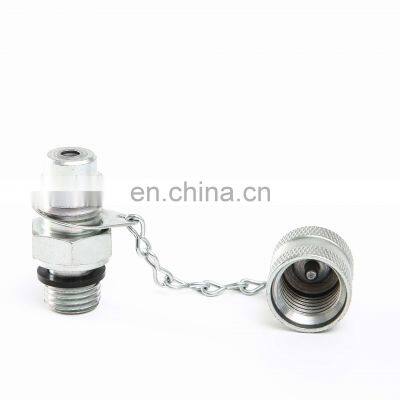

Product Description The role of Parker SensoControl test points is the monitoring and inspection, and also sampling, of high, low and vacuum systems. Test Couplings with ball check for normal hydraulic applications and hydraulic applications with high-viscosity fluids. They are used for venting cylinders and hydraulic installations.Features and MaterialsMaterials: 1. Body: Steel( black zinc/nickel-plated) or 304 stainless steel or 316 SS 2.Sealings: NBR, FPM3.Dust cap:Steel( black zinc/nickel-plated) 3.Wide Variety of Materials Available, we can design and change the materials according to Customer’s usage.Features:1.Test Couplings with ball check for normal hydraulic applications and hydraulic applications with high-viscosity fluids.2.The sealing system of the primary seal is provided by a ball check valve. An O-ring seal also operates as a secondary seal in the coupled test point fitting with pin-lock and also in connected diagnostic hoses.3.The test points can be easy connected and disconected with the pressure gauge. The dust cap is standard and can effectively prevent dust from entering4. A safety sleeve lock prevents accidental disconnection5. 4:1 Safety Factor. 6.These robust, reliable test points are outstanding, amongst other reasons, for their small dimensions and are therefore epecially suitable for tight access condition 7.The robust, reliable test point is outstanding, amongst other reasons, for its small dimensions and is therefore epecially suitable for tight access conditions.Company Profile Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.ExhibitionCertificationsRecommend Productscontaction
>>
