Plywood Production Machine/ Ideal Building Wooden Material Recycling Wood Working Machine/ Artificial Board and Wood Furniture Equipment

Product Description

1, Machine Introduction:

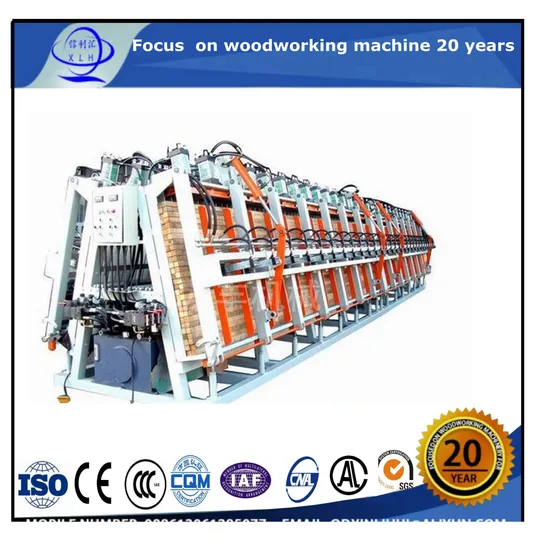

MH series pneumatic or Hydraulic board jointer can splice small boards which have been processed and treated in advance into big board, and it improves the wood utilization rate.
1. This machine adopts hydraulic principals characterized by a stable motion speed, huge pressure and still pressing. High density braced sheetings as back worktop and pressure from the above and front can prevent the curved angle and make the board completely. Low sanding and high output.
2. According to different working specifications(length or thickness), system pressure can be adjusted according to different pressure required. And there is pressure-supplement system, which ensure the continuous pressure.
3. Beside this machine, we also can offer composer for 14 pieces board, 30 pieces and 40 pieces, and with different specifications.
If you want to know detail, please contact with us by email, The equipment of various specifications can be customized according to the actual length, width and thickness of your special need.

2 Main specification
item	product name	model list	row number of jointing	board specificataion
1	pneumatic or Hydraulic board jointer	MY-2500-6A	6	2500*1000
2	pneumatic or Hydraulic board jointer	MY-2500-6B	6	2500*1250
3	pneumatic or Hydraulic board jointer	MY-4500-6A	6	4500*1000
4	pneumatic or Hydraulic board jointer	MY-4500-6B	6	4500*1250
5	pneumatic or Hydraulic board jointer	MY-2500-14A	14	2500*1000
6	pneumatic or Hydraulic board jointer	MY-2500-14B	14	2500*1250
7	pneumatic or Hydraulic board jointer	MY-4500-14A	14	4500*10000
8	pneumatic or Hydraulic board jointer	MY-4500-14A	14	4500*1250
9	pneumatic or Hydraulic board jointer	MY-2500-20A	20	2500*1000
10	pneumatic or Hydraulic board jointer	MY-2500-20B	20	2500*1250
11	pneumatic or Hydraulic board jointer	MY-2500-30A	30	2500*1000
12	pneumatic or Hydraulic board jointer	MY-2500-30B	30	2500*1250
13	pneumatic or Hydraulic board jointer	MY-2500-40A	40	2500*1000
14	pneumatic or Hydraulic board jointer	MY-2500-40B	40	2500*1250
15	pneumatic or Hydraulic board jointer	MY-4500-20A	20	4500*1000
16	pneumatic or Hydraulic board jointer	MY-4500-20B	20	4500*1250

3, Main Parameters:

max working length	6200mm
max working width	1300mm
max working thickness	150mm
up cylinder bore	Φ80mm
up cylinder quantity	16 pieces
side cylinder bore	Φ40mm
side cylinder quantity	16 pieces
side lifts cylinder bore	Φ63mm
side lifts cylinder quantity	4 pieces
power	380v 50z
hydraulic motor power	7.5kw
fixed voltage	16Mpa
overall size	6600*2200*2220
weight	8000kgs-90000kgs

Detail machine pictures, all photoes are for 100% real shooting !
8, Company Information
Qingdao Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.
Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.
The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards. With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad. Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic. It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.

---
