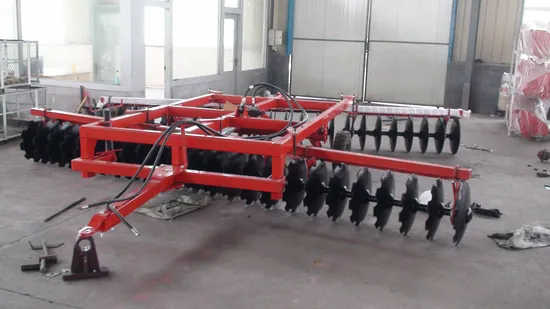

1bj Series Trailed Folding Wing Medium Disc Harrow

Product Description

1BJ Series 3.0-5.3m Width 28-48 Discs Hydraulic Trailed Offset Middle Duty Disc Harrow for 70-160HP Tractor This folding wing disc harrow is trailed for 80-160hp four wheels tractor.The harrow has high working efficiency.
1BJ series trailed folding wing Medium disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened and level the soil surface, crush and spread straw into the field, shatter soil after tillage, and level the land prepare the soil seedbed for planting. It can be used as tillage machine instead of plow on the cultivated land.
Good ability for soil pulverization.
This folding-wing harrow can be folded horizontal.
Wide range of operation.
Easy to transport because has the durable rubber tire

Model	1BJ-3.0	1BJ-3.4	1BJ-4.0	1BJ-4.4			1BJ-5.3
Working width(mm)	3000	3400	4000	4400			5300
Working depth(mm)	140
Diameter of disc	560mm / 22''
Thickness of disc(mm)	4
No. Of disc(pcs)	28	32	36	40			48
Weight(kg)	1300	1500	1700	2000			2300
Matched power(hp)	70-90	80-100	100-120	120-140			140-160
Linkage	Hydraulic trailed with tractor

.
RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below:
Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China

---
