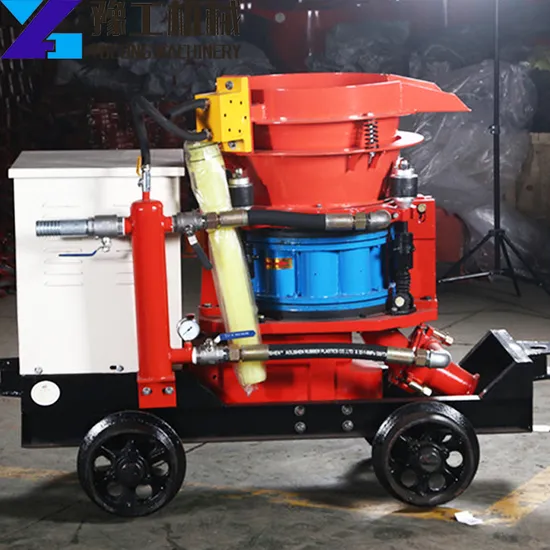

Max. 8m3 Per Hour Engineering Small Dry Shotcrete Machine

Product Description

Max. 8m3 Per Hour Engineering Small Dry Shotcrete Machine

Product Description
Shotcrete machine is a kind of spraying machine like mortar spraying machine which works by using compressed air to continuously transport concrete along the shotcrete machine hose and spray it to the construction surface by a shotcrete nozzle. You can find wet shotcrete machine and dry mix shotcrete here in YUGONG. Shotcrete machine is well received by market because its high efficiency, low cost, easy operation, and wide application. You can use the concrete shotcrete machine in tunnel, mining, retaining wall, underground project, and some other preventive construction projects.
Dry Shotcrete Machine Specification

Model	YGM-DS5P	YGM-DS7P
Capacity (cubic m/h)	5	7
Tube Diameter (mm)	51	57
Discharge Head (Horizontal)	200m	200m
Max Aggregate (mm)	20	20
Compressed Air Consumption	10-15m3/min	10-15m3/min
Air Pressure (mpa)	0.4-0.6	0.6-0.8
Motor Power(kw)	5.5	7.5
Rotor Diameter (mm)	438	480
Weight (kg)	850	950

Wet Shotcrete Machine Technical Parameter

Model	GM-WS5P	YGM-WS7P
Capacity (cubic m/h)	5	7
Tube Diameter (mm)	51	57
Discharge Head (Horizontal)	50m(Horizontal) 20m (Vertical)	50m(Horizontal) 20m (Vertical)
Max Aggregate (mm)	15	15
Compressed Air Consumption	7-10m3/min	7-10m3/min
Air Pressure (mpa)	0.2-0.6	0.2-0.6
Motor Power(kw)	5.5	7.5
Rotor Diameter (mm)	1000	1250
Weight (kg)	720	830
Dimension (mm)	1350*750*1150	1400*750*1300

Five Major Advantages of Shotcrete Machine
1. The wet shotcrete machine greatly reduces the density of dust around the machine and the shotcrete nozzle, which can do less harm to workers' health.
2. Much higher efficiency than manual work.
3. Low rebound rate. When using dry mix shotcrete, the rebound rate ups to 15%-50%, but the wet shotcrete machine can reduce the rebound rate to under 10%.
4. There is more water when using wet mix shotcrete, which can improve the quality of the spraying concrete.
Company Information
Henan Yugong Machinery Co., Ltd., located in Room 2702, 27th Floor, Block B, Jingsha Plaza, Jingguang Road, Erqi District, Zhengzhou, Henan, China, gains its rapid development as a reputable machinery manufacturer. We develop from a small company with only 6 people to a company with over 100 people thanks to the trust of our customers and innovation of ourselves. We always insist that only quality can make us successful, and only innovation creates wider development direction for us.
Thanks to complete after-sale services and guaranteed quality of the machines, we have won a good reputation in our customers domestic and abroad. Up to now, we have exported our machinery to many countries around the world, such as Russia, Sri Lanka, America, South Africa, Pakistan, Guinea, Canada, Lebanon, Zambia, Ethiopia, etc.
The development principle of Yugong machinery company is "Quality First, Reputation First, Be Innovative, Be Excellent". Guided by this principle, staff in company and factory dedicate to manufacture top quality products to meet the needs of customers. From the technical design to the procurement of raw materials, and from the precision processing and manufacturing to the strict inspection of quality, all machines in YUGONG meets the requirements of ISO9001. we hope you can choose us and share success with us!
Packaging & Shipping
Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 20-30working days after deposit.
Our Services
1. Pre-Sale Service: Recommend Suitable Machine According to Your Application.
2. In-Sale Services: Confirm the Order, Arrange Item Production, Supervise the Packaging and Shipping, and Offer Buying Guide to Finish the Purchase.
3. After-Sale Services: 24 Hour Technical Support Online. Contact Us to Get the Prompt Reply.
FAQ
1. Q: You are a Trading Company or Manufacturer?
A: We are an original reliable machinery manufacturer
2. Q: Do you Provide Samples? For Free or charge?
A: Yes, we can provide samples, but not for free. You have to pay for samples and freight.
3. Q: What Should We do if the Item doesn't Meet our Requirements after Receiveing?
A: If the item doesn't meet your requirements after receiving it, you can return it within 10-15 days.
4. Q: How Long is your Delivery Time?
A: It depends on the machine you buy and the quantity. Generally it is 3-5 days if the machine is in stock. And it will take 15-30 days if you want customized type.
5. Q: What is your Payment Term?
A: We accept T/T, Western Union, Money Gram, Paypal, ****** Escrow etc. Payment<=USD 5000, 100% in advance. Payment>=USD 5000, 30% T/T in advance, balance before shipment.
Contact Mia Here to Get Your Own Discount Price!

---
