Automatic Woodworking CNC Panel Saw for High Precision Saw

Product Description

Automatic computer panel sizing saw machine for panel cutting Woodworking Industrial Beam Saw Machine CNC Panel Saw
1). CNC computer beam saw machine picture
2).Main Parameter

Model number	DZ2800	DZ3300	DZ3800
Max.cutting length	2800mm	3300mm	3800mm
Max.cutting height	120mm	120mm	120mm
Min.cutting size	35*35mm	35*35mm	35*35mm
Main saw blade motor power	18.5kw	18.5kw	18.5kw
Main saw blade diameter	450mm	450mm	450mm
Main spindle diameter	75mm	75mm	75mm
Main saw blade speed	4000r/min	4000r/min	4000r/min
Scoring saw motor power	2.2kw	2.2kw	2.2kw
Scoring saw diameter	¢200mm	¢200mm	¢200mm
Scoring spindle diameter	¢50	¢50	¢50
Scoring saw speed	6000r/min	6000r/min	6000r/min
Saw carriage forward speed	100 m/min	100 m/min	100 m/min
Saw carriage backward speed	120 m/min	120 m/min	120 m/min
Pusher system drive motor	1.8kw	1.8kw	1.8kw
High pressure blower motor	3kw	3kw	3kw
Saw carriage drive motor	1.8kw	1.8kw	1.8kw
Working air pressure	6-7kg/cm2	6-7kg/cm2m2	6-7kg/cm2
Clamp number	9 groups	10 groups	11 groups
floating tables	3	3	4

3).Details pictures.

detail pictures of computer beam saw machine
1		PC control system Advantage IPC original, Siemens PLC LCD system; Safe and reliable operation, editable management of sawing and sawing tasks; compatible with optimized sawing software.
2		Optimization software: Automaticallygeneratetheoptimazationsawingsolution, can savepersonalcalculationtimeandenhancingmaterialutilization efficiency, which can save labor cost, material and inhance the efficiency. Label printer: One cutting board stick one label with all information on the label, Such like customer name, board name, board thickness, width, length, easy for factory to control production.

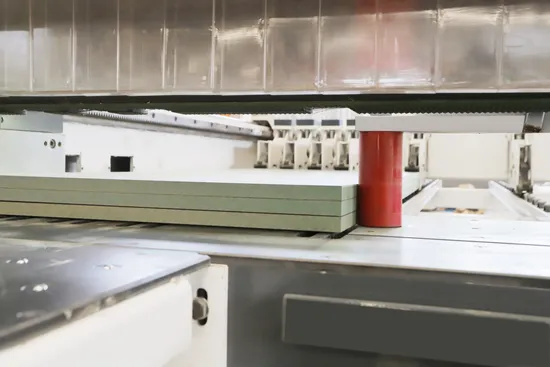

3		Side aligning device Linear guide way structure fixing cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision. Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
4		Saw carriage driving system with liner guideway Adopts with servo control and transmission with gears & racks, maximum moving speed is up to 120m/min. The whole frame is integrated to ensure that the work surface is kept on a flat surface to ensure cutting accuracy. The beam is made of 30mm thick steel plate, weighing 1.1T Taiwan30 linear guide, 5.6 meters, loner service life. Main frame adopting annealing technology, ensure frame non- deformation,
5		Saw blades Two saw blades are installed vertically, ensure cutting precision. 18.5kw+2.2kw sawing motors, max cutting thickness 120mm. saw blade is installed vertically, nut locking device, easy to assemble without adjustment; Saw cutting to ensure accuracy and no chipping.
6		Pusher driving system Pusher adopts high precision worm reduce ans feeding gears and racks to make an accurate sawing.
7		10 sets of clamps. Pneumatic holding gripers, can give the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, minimum holding panel size is 35*35mm.
8		Working table equipped with Air-floating balls Effectively protects panel from scratching and much easier to feed in panel.

4). Loading and delivery.
1. Delivery.
We can guarantee delivery on time. We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount. 2. Package.
After testing the cnc computer beam saw machine well, our workers will do cleaning work before package.
stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film. 3.Warranty. The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time. 4.Technical support. Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online. We provide English version manual and Operational video. Engineer available to service machinery overseas. 3.Installation. Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course , our technician will give you professional help for all the steps.
No worry for any installation or operation of this computer beam saw, we are here to help you.
Heavy duty frame, Unique internal structure, optimization software, top-brand spare parts, professional installation workers, intime- after sale service, This machine surely can highly improve your working efficiency and precision,
please contact me now to start your working upgrading!

---
