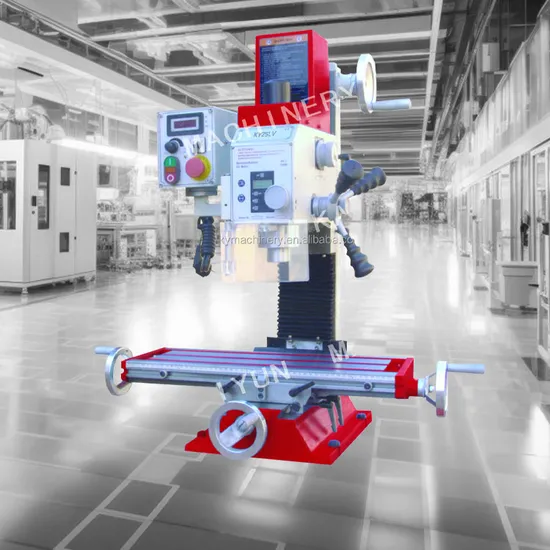

Milling and Drilling Machine Ky20V/Ky20LV Universal Drilling Milling Machine

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
KY20V/KY20LV
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Drilling Capacity
25mm
Motor
600W
Load of Table
55kg
T-Slot
12mm
Sleeve Travel
50mm
Spindle Taper
Mt2
End Milling Capacity
20mm
Face Milling Capacity
63mm
Color
Red
Transport Package
Wooden Case
Specification
KY20V/KY20LV
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description

Features
1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
Specification

Model No 		KY20V KY20LV

Drilling capacity		 20mm 20mm

Face milling capacity 		63mm 63mm

End milling capacity 		20mm 20mm

Spindle taper		 MT2 MT2

Sleeve travel 		50mm 50mm

Low speed stage		 50-1125rpm 50-1125rpm

High speed stage 		100-2250rpm 100-2250rpm

Head rotation		 ±90° ±90°

Table size 		500x180mm 700x180mm

X-axis travel		 280mm 480mm

Y-axis travel 		175mm 175mm

Z-axis travel 		380mm 380mm

T-slot		 12mm 12mm

Load of table 		55kg 55kg

Motor 		600W 600W

Packing size		 670x550x860mm 870x550x860mm

Net weight		 103kg 115kg
Standard Accessories

Speed display		 1 set

Depth ruler		 1 set

Drill chuck 3-16mm		 1 set

Arbor MT2/B16, M10		 1 set

Drawbar MT2/M10		 1 set
Optional Accessories

Stand & chip tray

Working lamp

Keyless drill chuck 3-16mm

ER25/6pcs collet chuck (4-16mm)

2-way angle vise-50mm

End mill 7pcs (4-16mm)

58pcs of clamping kits/M10*11.7mm

X-axis Power feed
