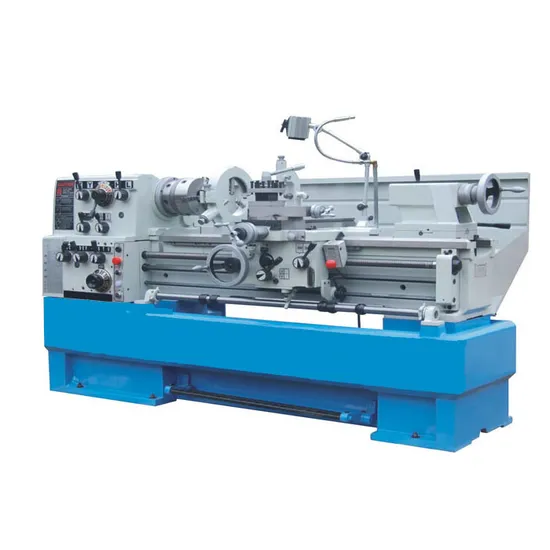

China Horizontal Gap Bed Turning Lathe Machine (C6246)

Product Description

China horizontal gap bed turning lathe (C6246)
1.Features:
One piece cast iron stand assure the more rigidity
Spindle bore 52mm
Horizontal type
Bed width 400mm
Swing over bed 410mm, 460mm.
Can be with CE standards
Total en-closed feed box making a wide range of threads
These lathes can satisfy the various turning requirements of very wide range of difference industries.
High speed dynamically balanced spindle,
Precision ground bed slideways, --gurantee high accuracy of the total length of machine
New type box and high precision spindle structure
2.Standard Accessories:
--3-Jaw chuck
--Sleeve and center
--Coolant system
--Footbrake system
--Footstand
--Tool box & tools 1 set
--Splash guard
--Oil tray

3.Optional Accessories:
--DRO
--Quick change tool post
--4-Jaw chuck(200mm)
--Face plate
--Steady rest
--Follow rest
--Work light
--Live center
--Drill chuck + Drill arbor
--Leadscrew cover
--Chuck cover
--Localizer
--Clutch for feed rob
--Taper turning attachment
4.Specifications for our lathe:

(C6241/C6246)
Specification	Model
	C6241×1000	C6241×1500	C6241×2000			C6246×1000	C6246×1500	C6246×2000
Capacity
Swing over bed	410mm(16")					460mm(18")
Swing over cross slide	220mm(8-13/16")					270mm(10-3/4")
Swing in gap	640mm(25-1/8")					690mm(27-1/8")
Distance between centers	1000mm(40")	1500mm(60")	2000mm(80")			1000mm(40")	1500mm(60")	2000mm(80")
Valid length of gap	165mm(6-1/2")
Width of bed	300mm(11-13/16")
Headstock
Spindle nose	D1-6
Spindle bore	58mm(2-1/4")
Taper of spindle bore	No.6 Morse
Range of spindle speed	12 changes, 25~2000r/min
Feeds and threads
Max.travel of top slide	128mm(5")
Max.travel of cross slide	285mm(11-1/4")
Max.section of tool	25×25mm(1"×1")
Pitch thread of leadscrew	6mm or 4T.P.I.
Longitudinal feeds range	42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev)
Cross feeds range	42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev)
Metric threads range	41 kinds, 0.1~14mm
Inch threads range	60 kinds, 2~112T.P.I.
Diametrical pitches range	50 kinds, 4~112DP
Module pitches range	34 kinds, 0.1~7MP
Tailstock
Dia. of tailstock sleeve	60mm(2-5/16")
Travel of tailstock sleeve	128mm(5")
Taper of tailstock sleeve	No.4 Morse
Motor
Power of main motor	5.5kW(7.5HP) 3PH
Power of coolant pump	0.1kW(1/8HP) 3PH
Dimension and weight
Overall dimension (L×W×H) cm	220×108×134	275×108×134	325×108×134	220×108×137	275×108×137		325×108×137
Packing size(L×W×H) cm	225×112×162	280×112×156	330×113×156	225×112×162	280×112×156		330×113×156
Net weight	1670kg	1920kg	2070kg	1720kg	1970kg		2120kg
Gross weight	1980kg	2265kg	2450kg	2045kg	2330kg		2515kg
Standard accessories

---
