Basic Info.
Pixel Configuration
1R,1G,1B
Pixel Density
147456 Dots/M2
System Operating Platform
Windows XP / Windows 7 / Windows 8 /8.1 / Windows
Display Type
LED Video Display
Application
Stage Performance
Pixel Configuration
SMD2020
Brightness
≧1000CD/M2
Module Size(W*H)
250mm*250mm
Module Resolution (W*H)
84 Dots X 84dots
LED Control System
Nova-Star
Transport Package
Flycase or Carton Packing
Specification
500*1000MM or 500*500MM
Production Capacity
1000PCS/Month
Product Description

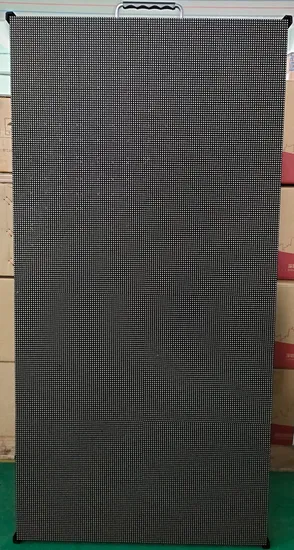

Full colour indoor P2.6/P2.9 P3.9/P4.8 LED screen for rental and events
Specifications
P2.6
Pixel Pitch: 2.604mm
Pixels Density:147456 dots/m2
Pixel Configuration:1R1G1B
Pixel Resolution: 192 X 384 dots
Package Mode: SMD2020
Chip Brand:kinglight
Drive Type: Constant drive
Drive Chip: ICN2055
Scan Mode: 1/32 scan
Port Type: HUB26P
Control System: Novastar MRV210-1
Brightness: ≥700cd/m²
Average Power: 280W/m²
Maximum Power: 650W/m²
Refresh Frequency: ≥1920Hz
Grayscale: ≥14Bit
Protection Level:IP30
Viewing Angle(V/H): horizontal 160 ° (ajustable)
Vertical 160 ° (ajustable)"
view distance:3-100M
Life time>50,000 Hours
Operating temperature:(-30--60ºC)
Humidity 10%-95%
P2.9
Pixel Pitch: 2.976mm
Pixels Density:112896 dots/m2
Pixel Configuration:1R1G1B
Pixel Resolution: 168 X 336 dots
Package Mode: SMD2020
Chip Brand:kinglight
Drive Type: Constant drive
Drive Chip: ICN2153
Scan Mode: 1/28 scan
Port Type: HUB26P
Control System: Novastar MRV210-1
Brightness: ≥800cd/m²
Average Power: 280W/m²
Maximum Power: 650W/m²
Refresh Frequency: 1920Hz
Grayscale: ≥14Bit
Protection Level:IP30
Viewing Angle(V/H): horizontal 160 ° (ajustable)
Vertical 160 ° (ajustable)"
view distance:2-100M
Life time>50,000 Hours
Operating temperature:(-30--60ºC)
Humidity 10%-95%
P3.9
Pixel Pitch: 3.906mm
Pixels Density:65536 dots/m2
Pixel Configuration:1R1G1B
Pixel Resolution: 128 X 256 dots
Package Mode: SMD2020
Chip Brand:kinglight
Drive Type: Constant drive
Drive Chip: ICN2038S
Scan Mode: 1/16 scan
Port Type: HUB16P
Control System: Novastar MRV208
Brightness: ≥1000cd/m²
Average Power: 280W/m²
Maximum Power: 650W/m²
Refresh Frequency: ≥1920Hz
Grayscale: ≥14Bit
Protection Level:IP30
Viewing Angle(V/H): horizontal 160 ° (ajustable)
Vertical 160 ° (ajustable)"
view distance:3-100M
Life time>50,000 Hours
Operating temperature:(-30--60ºC)
Humidity 10%-95%
P4.8
Pixel Pitch: 4.806mm
Pixels Density:43264 dots/m2
Pixel Configuration:1R1G1B
Pixel Resolution: 104 X 208 dots
Package Mode: SMD2020
Chip Brand:kinglight
Drive Type: Constant drive
Drive Chip: ICN2038S
Scan Mode: 1/13 scan
Port Type: HUB16P
Control System: Novastar MRV208
Brightness: ≥1000cd/m²
Average Power: 250W/m²
Maximum Power: 600W/m²
Refresh Frequency: ≥1920Hz
Grayscale: ≥14Bit
Protection Level:IP30
Viewing Angle(V/H): horizontal 160 ° (ajustable)
Vertical 160 ° (ajustable)"
view distance:3-100M
Life time>50,000 Hours
Operating temperature:(-30--60ºC)
Humidity 10%-95%
| Q1: What's the warranty ? |
A: Our warranty is 1 year (from the date our products reach our clients) , If there is any quality problem during warranty time, we will provide spare parts for free and shipping for free we have vedio to show customers how to fix the problem |
| Q2,Are you a factory ? |
| A;Yes. We are factory with 8 years in stage lighting industry and we are ISO9001 manufactuer. |
| Q3,How can I trust you? |
| A: Please kindly check our business license and certificate issued by Bureau Veritas from home page. |
| Q4,How can I get a good quotation? |
A;Your quantity,your country,your requirement,quantity,shipping way,your package or any other requirement We will quote you our best quotation based on your requirement |
| Q5,How about the delivery time? |
A;Sample order will be ready in 2-3 days For small order,it will be ready in 7-10 days. For container order, it will be ready in about 20-30 days |
| Q6,How about the shipping way? |
1, By door-door express(such as DHL,UPS,TNT,EMS) 2. by air freight(airport to airport) 3. by sea(port-port). 4. By sea (door to door incuding custom clearance and custom duty |
| Q7,How about payment terms? |
A: We recommend T/T,Western Union, Paypal Paypal is available but takes extra 5% handling charges. |
| Q8,How about the MOQ? |
| A: It depends on the products,sample is available. |
| Q9,How could you guarantee the quality? |
A: First,we have inspections both for material and production,our QC team will do inspection for each procedure before shipment Second,we have 1 year warranty for all our products,if you have any problem,please help to provide picture or video, we will provide free parts for any quality problem. we have vedio to show clients how to fix the problem. also we provide lifetime after-sale service for our clients. |
| Q10,Where is your factory located? How can I visit there? |
| A,Our factory is located in Guangzhou City, Guangdong Province, about 40 minutes away from Baiyun Airport,welcome to visit! |
| Q11: Dose the unit with any certificate here? |
| A: we have CE. RoHS, CCC, QC for our products |
>>
