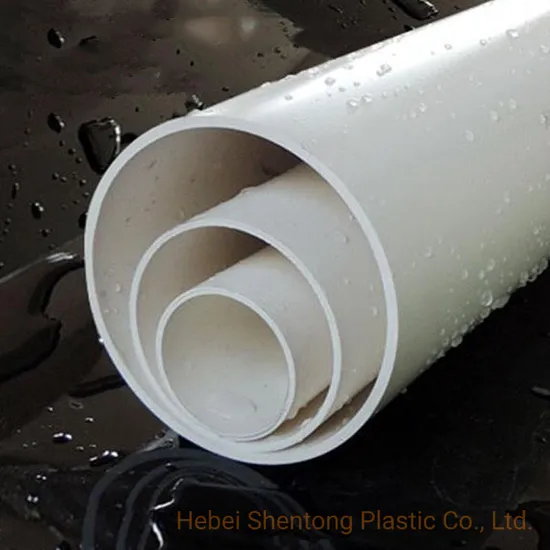

Water Supply 20-250mm PVC Pipe

Product Description

PVC Water Supply Pipe
Product Name: PVC Pipe For Water Supply
PVC-U Pipe For Water Supply
Material: Polyvinyl Chloride
Color: White or Custom-made
Standard: GB/T 5836.1-2006, GB/T1002.1-2006, ASTM, CJ/T 272-2008
Specification: 20-1000mm
Length: 4m or as required
Guarantee: more than 50 years
Product Description
1. Environmental Protection Formula
PVC resin itself is non-toxic, adding toxic stabilizers or plasticizers will produce hidden dangers. We use environmental protection and lead-free formula, which will not pollute the water quality and affect the health.
2.Corrosion Resistance
It is not affected by residual chlorine in water (chlorinated disinfection residue), while many polyolefin materials (such as PE, PPR) are vulnerable to residual chlorine damage, resulting in reduced life.
3.Aging resistance
Material chemical stability is high, material test and engineering examples prove that the actual service life of UPVC is more than 50 years.
4. Low Cost
The price of raw materials is relatively low, the engineering cost is lower than other products, the weight is about 1 / 6 of galvanized steel pipe, the loading and unloading is convenient, and the transportation cost is low.
5. Impedance bacteria
It has biological impedance and is not easy to breed bacteria. The growth rate of bacteria in its pipes is far lower than that of PE, PPR and other plastic pipes.
6. Smooth pipe wall, not easy to scale
The surface roughness coefficient is only 0.009, which can reduce scale and fouling plug, reduce fluid resistance, and effectively reduce energy consumption cost in long-term use.
7. Low Thermal Conductivity
The conduction heat coefficient is 1 / 300 of that of galvanized steel pipe, which can save energy, reduce heat preservation cost and reduce condensation trouble.
8. Easy and fast installation
It only needs special glue or special rubber ring to connect, and it does not need to be electrified and melted or connected with wire thread instead.
Specification

ominal Diameter (mm)	Nominal Diameter (inch)	Wall Thickness (mm)
		SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9
		PN6	PN8	PN10	PN12.5	PN16	PN20
20	3/4"	--	--	--	--	--	2
25	1"	--	--	--	--	2	2.3
32	1 1/4"	--	--	--	2	2.4	2.9
40	1 1/2"	--	--	2	2.4	3	3.7
50	2"	--	2	2.4	3	3	4.6
63	2 1/2"	2	2.5	3	3.8	4.7	5.8
75	3"	2.3	2.9	3.6	4.5	5.6	6.9
90	3 1/2"	2.8	3.5	4.3	5.4	6.7	8.2
110	4 1/4"	2.7	3.4	4.2	5.3	6.6	8.1
125	5"	3.1	3.9	4.8	6	7.4	9.2
140	5 1/2"	3.5	4.3	5.4	6.7	8.3	10.3
160	6 1/4"	4	4.9	6.2	7.7	9.5	11.8
180	7"	4.4	5.5	6.9	8.6	10.7	13.3
200	8"	4.9	6.2	7.7	9.6	11.9	14.7
225	9"	5.5	6.9	8.6	10.8	13.4	16.6
250	10"	6.2	7.7	9.6	11.9	14.8	18.4
280	11"	6.9	8.6	10.7	13.4	16.6	20.6
315	12 1/2"	7.7	9.7	12.1	15	18.7	23.2
355	14"	8.7	10.9	13.6	16.9	21.1	26.1
400	15 3/4"	9.8	12.3	15.3	19.1	23.7	29.4
450	17 3/4"	11	13.8	17.2	21.5	26.7	33.1
500	19 3/4"	12.3	15.3	19.1	23.9	29.7	36.8
560	22"	13.7	17.2	21.4	26.7	--	--
630	24 3/4"	15.4	19.3	24.1	30	--	--
710	28"	17.4	21.8	27.2	--	--	--
800	31 1/2"	19.6	24.5	30.6	--	--	--

Application
Building water supply system, municipal water supply system , agricultural irrigation and sprinkler system, pool water circulation system , shaft sinking engineering, golf course engineering, air conditioning cooling water and circulating water system.
Certification
Company Info

FAQ Q: What is your MOQ?
A: As customer's request.
Q: Why choose us?
A: We are leading professional manufacturer of HDPE/PVC/PPR pipes&fittings, we offer one stop pipeline system with competitive price.
Q: How to buy the product?
A: You can contact our sales manager by Email, Wechat, Phone number or Whatsapp, and send us the BOQ list, we will contact you immediately. The more specific product information you provide, the faster and easier you can get a quote.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partners from globally, we can produce your product in China.
Q: Do you have customized pipe and fittings?
A: We can make any plastic pipes and fittings according to customers drawings.

---
