CE Certificated 15 Ton Hydraulic Excavator

US$47,260.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZG150
Type
Crawler Excavator
Usage
Marine Excavator, Mining Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Container
Trademark
CHANGLIN
Origin
China

Product Description

Product Description

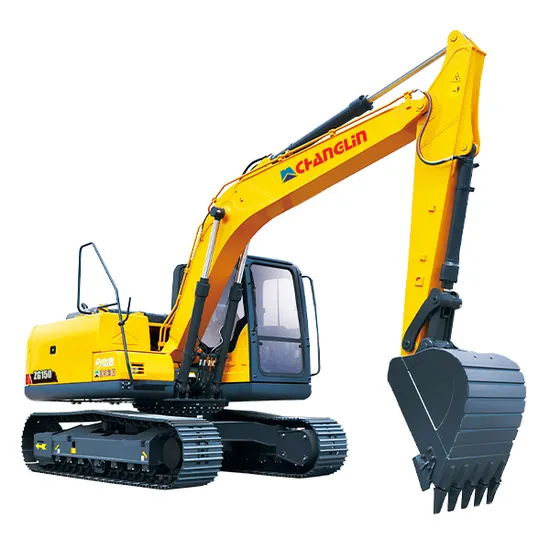

ZG150 15 ton excavator
CHANGLIN ZG150 Equipped with top brand engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.Based on the above advanced technology, CHANGLIN ZG150 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•Equipped with Top brand engine, high load resistance, high horsepower output, high reliability, low fuel consumption, significantly reduce the use and maintenance costs •Advanced negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency. •High-strength reinforced box-type side beams and X-shaped middle frames, high-reliability towline wheels and track rollers, can withstand the impact caused by excessive loads. •Intelligent electronic monitoring system, real-time monitoring, self-diagnosing fault alarm, maintenance information prompt.
ITEM
UNIT

Technical specifications
GE150H
Operating weight Kg 13890
Power KW/rpm 86/2200
Rated bucket capacity m3 0.6
Length A mm 7762
Width(500mm track) B mm 2510
Height C mm 2983
Turntable width D mm 2510

Height of cabin
E mm 2825
Ground clearance of counterweight F mm 915

Engine cover height
G mm 2243
Min. ground clearance H mm 416
Tail length I mm 2306
Turning radius of turntable I' mm 2387

Wheel base of track shoe
J mm 3010

Length of chassis
K mm 3751

Width of chassis
L mm 2490

Track shoe gauge
M mm 1990

Standard track width
N mm 500

Max. traction
KN 122
Traveling speed (H/L) Km/hr 5.9/3.4

Swing speed
rpm 13
Gradeability Degree(%) 35(70%)

Ground pressure
Kgf/cm2 0.423
