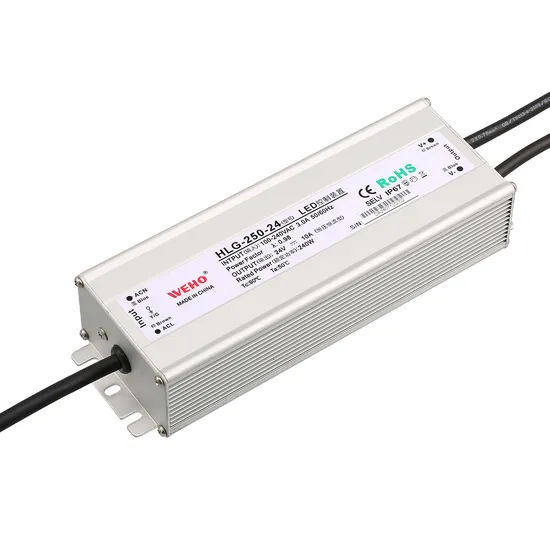

AC to DC OEM China Manufacture High Quality Power Supplies Hlg-250-24 250W 24V 10A Switching Power Supply

Product Description

Product Description Ac to Dc OEM China Manufacture High Quality Power Supplies HLG-250-24 250W 24V 10A Switching Power Supply
Features:
1. 95-264V AC Input
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Detailed Photos
Product Parameters

Model	HLG-250-12	HLG-250-24	HLG-250-36	HLG-250-48
DC output voltage,ratedcurrent	12V 20A	24V 10A	36V 6.9A	48V 5A
Wave andnoise	180mVp-p	200mVp-P	220mVp-P	220mVp-P
Line regulation	±0.5%	±0.5%	±0.5%	±0.5%
Load regulation	±2%	±0.5%	±0.5%	±0.5%
Efficiency	0.9	0.915	0.93	0.935
Voltage accuracy	±3%	±2%	±2%	±2%
Input voltage range	95~264VAC/135~373VDC 47~63Hz
Impact current	Coldstart current 45A/230VAC
Overcurrent protection	95%~108%of the rated output current starts overcurrent limit,recover automatically after abnormalconditions areremoved
Short circuit protection	Hiccup mode:recover automaticallynormal output after abnormal conditions are removed
Setup,rise,hold uptime	200ms,30ms,20ms/230VAC (at full load)
Pressure resistance	I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV
Isolation resistance	I/P-O/P I/P-FG O/P-FG:100MOhms/500VDC/25ºC /70%RH
Working temperature	20C~+60C
Dimension	205×69×43mm
Weight	1.1kg
Packing	16PCS

Certifications
Packaging & Shipping
Company Profile
FAQ Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Why choose us
A2:We have been engaged in the switching power supply industry for 17 years,We have enough experience to meet your needs.
Q3:How can I get the samples?
A3:You can pay for the sample this time, and we will refund the sample fee for the next batch order.
Q4:How to order?
A7:Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q5:How many years warranty of your switching power supply?
A8: Three years.

---
