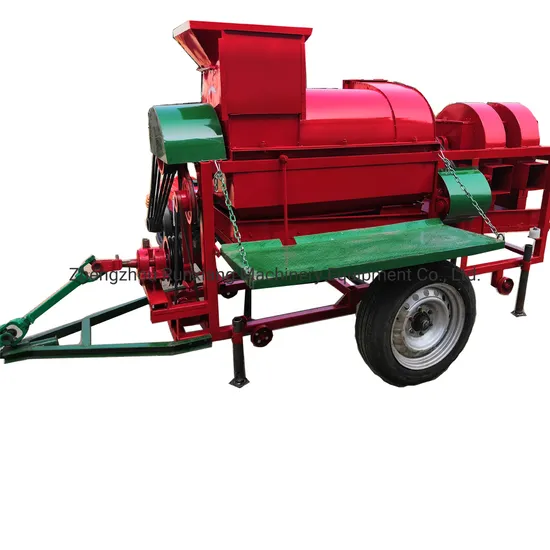

Wheat Corn Soybean Paddy Rice Thresher Machine

Product Description

Wheat/ Corn/ Soybean Paddy Rice Thresher Machine
I. Introduction:
A. This is a multi-functional threshers can be used for threshing cole, rice, wheat, barley, and some other crops, if thresh the bean or wheat, the speed is about 1000kg/h, if thresh the corn, the speed is more than 1000kg/h
B. Series whole feeding Threshing Machine, which is safe, reliable, simple in structure and easy to maintain, is mainly applied to the threshing of wheat and rice, with the separation of wheat, wheat straw wheat bran and others.
C. It is high frequency and can be connected with Strap type tractor in the front. Even if there is no tractor, it can be connected with kinds of motors both or three-phase.
D. This machine include the walking device, feeding device, thresher device, conveyor and separator, power drive total 5 parts
II. Advantage:
A. Grain and straws to be automatic separation;
B. It will not damage the finished product
C. The sieve can be adjusted according to customer's need.
III. Work principle
A. Main parts: The wheat thresher is made up of ranks, concave screen, drum, cover, main fan, the second suction fan, motor (or diesel), vibrating screen, traction-driven device.
B. The crop through the functions of the friction, extruding, crash, shaking between the rattler's rack and sieve assembling unit, making the seed detaching from the stalk, then discharge from the sieve, the stalk is casted by the centrifugal role of the rattler, then finishing the threshing.
C. Note: Please feed the crop uniformly in a row. After assembly rubbing, squeezing, colliding ext. To make the grain away, the flow out through the concave.
IV. Installation
A. Please put the rice/wheat thresher on the flat place
B. Please fix the right motor
C. Please check the V-belt carefully and adjust the direction of the motor.
D. Please adjust the space between rollers and concave
E. Do make sure the screw tight
F. Do make the thresher spinning 3-5 minutes to assure no any abnormality happen, then start to work.

Model		WS5T-28	WS5T -30	WS5T -40
Motor		2.2-3	3-4	5.5
Capacity Kg/h	Wheat	200-300	300-500	400-600
	Beans	300-400	400-600	400-800
	Rice	150-200	200-250	300-400
	Corn	800-1000	1000-2000	3000-4000
Broken rate (%)		<=0.7	<=0.7	<=3
Weight (KG)		120	180	300
Threshing rate		>99%	>99%	>99%
Size mm		550*400*1000	600*500*1100	800*650*1200mm

Except that,our company also have other models,we can suggest the most suitable model according to your requirement:

---
