US$67.00
1,000-99,999 Pieces
Basic Info.
Model NO.
JKM580N-72HL4-V
Panel Dimensions
2278mm*1134mm*35mm
Frame
Anodized Aluminium Alloy
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
3.000kg
Product Description

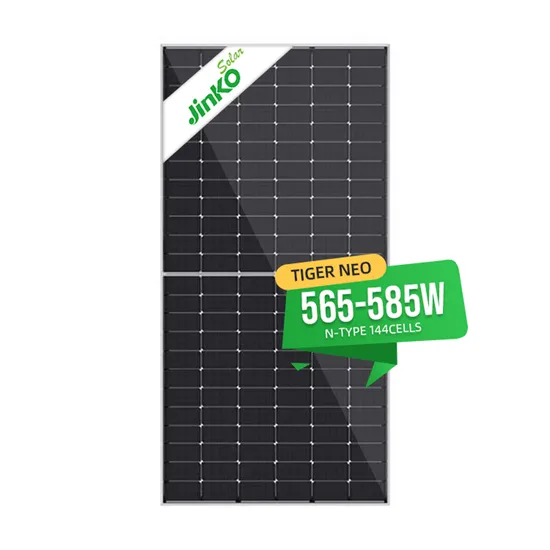

Jinko Solar Tiger Neo N-type 72HL4-( V) 565-585 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
| Cell Type | N type Mono-crystalline |
| No.of Half-cells | 144 (6×24) |
| Dimensions | 2278*1134*35mm (89.69*44.65*1.38 inch) |
| Weight | 28kg (61.73 lbs) |
| Front Glass | 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length |
Advantages of Tiger Neo N-type 72HL4-(V) *Better light trapping and current collection to improve module power output and reliability *The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID *Certified to wishstand:wind load (2400 Pascal) and snow load (5400 Pascal) *Excellent Anti-PID performance guarantee via optimized mass-production process and materials control
Product Parameters ENGINEER DRAWING Jinko Solar Tiger Neo N-type 72HL4-( V) 565-585 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel Electrical Performance&Temperature Dependence Jinko Solar Tiger Neo N-type 72HL4-( V) 565-585 Watt MONO-FACIAL MODULE N-Type Mono-crystalline Solar Panel
| Module Type | JKM565N-72HL4 JKM565N-72HL4-V | JKM570N-72HL4 JKM570N-72HL4-V | JKM575N-72HL4 JKM575N-72HL4-V | JKM580N-72HL4 JKM580N-72HL4-V | JKM585N-72HL4 JKM585N-72HL4-V |
| | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC NOCT |
| Maximum Power Pmax.(Wp) | 565 | 425 | 570 | 429 | 575 | 432 | 580 | 436 | 585 440 |
| Maximum Power Vmp(V) | 41.92 | 39.38 | 42.07 | 39.51 | 42.22 | 39.60 | 42.37 | 39.69 | 42.52 39.81 |
| Maximum Power Imp(A) | 13.48 | 10.79 | 13.55 | 10.85 | 13.62 | 10.92 | 13.69 | 10.99 | 13.76 11.05 |
| Open-circuit Voc(v) | 50.60 | 48.06 | 50.74 | 48.20 | 50.88 | 48.33 | 51.02 | 48.46 | 51.16 48.60 |
| Short-circuit Isc(A) | 14.23 | 11.49 | 14.31 | 11.55 | 14.39 | 11.62 | 14.47 | 11.68 | 14.55 11.75 |
| Module Efficiency | 21.87(STC) | 22.07%(STC) | 22.26%(STC) | 22.45(STC) | 22.65%(STC) |
| Operating Temperature(ºC): -40ºC~+85ºC |
| Maximum System Voltage: 1000/1500VDC (IEC) |
| Maximum Series Fuse Rating: 25A |
| Power Tolerance: 0~+3% |
| Temperature Coefficients of Pmax: -0.30%/ºC |
| Temperature Coefficients of Voc: -0.25/ºC |
| Temperature Coefficients of Isc: 0.046%/ºC |
| Nominal Operating Cell Temperature(NOCT): 45±2ºC |
Packaging & Shipping
| Model | Jinko JKM565N -72HL4-JKM585N -72HL4 |
| Modules per box | 31pcs/pallets, 62pcs/stack, |
| Modules per 40' HQ container | 620PCS |
Application
Installation Instructions
Certifications
