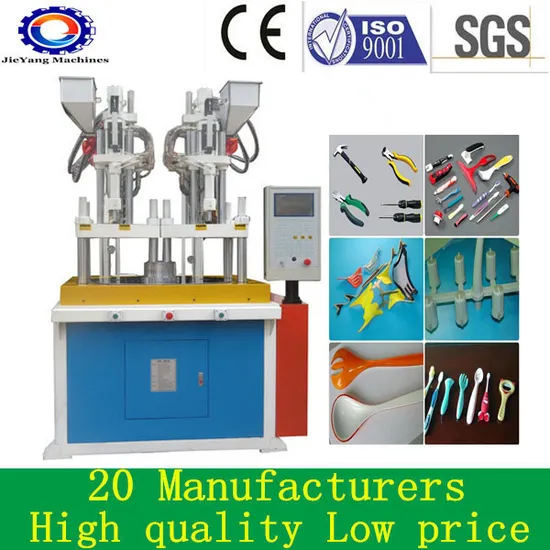

Double Two Color Vertical Injection Molding Machines

Product Description

Dongguan Jieyang Machinery Co., Ltd is established in 2005, which is located in Xincheng Industrial Zone of Hengli Town. Our factory is about 2000 square meters. We have more than 20 years manufacturing experiences of vertical plastic injection molding machines with precision machining equipment and professional team. We do our best to provide the solution with competitive cost to our customers and it is recognized by all our customers.
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
Our Goal: "Customer Satisfaction, Continual Improvement and Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do our best level.
Function:
1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding
finish at the same time, which is more safe and efficient for production , then
reduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatlyextend machine
& mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and
provide superior acid/alkaline resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50%
Parameter of Machine:

JY-350T DM-SS/1500SWT Technique specification
Model			Units	JY-350STDM-SS			JY-1500STDM-SS
Injection System	Screw Diameter		mm	30	32	35	35	42	48
	Injection Pressure		Kg/cm2	1171	996	810	2569	1888	1649
	Theoretical Shot volume		cm3	81	92	110	161	232	303
	Max. Shot Weight(P.S)		9	74	84	106	144	208	273
	Injection Rate		cm3/sec	62.5	71	95	95	129	142
	Screw speed Max		rpm	0-190			0-180
	Temperature Control		ZONE	3			5*2
Clamping System	Clamping Force		T	45			150
	Platen Size		mm	830*400			1220*600
	Distance Between Tie Bare		mm	650*480			810*610
	Min Mold Height		mm	410/250			620/430
	Opening Stroke		mm	200			390
	Max. Open Daylight		mm	450/350			940/740
	Ejector Force		T	1.5			6.3
	Ejector stroke		mm	135			135
Power&Heading System	Max. Hydraulic Pressure		Kg/cm2	140			140
	Pump Output		L/min	37.2*2			56*2
	Pump Motor Power		Kw/HP	5.5/7.2			22/30
	Barrel Heating Power		Kw	2.8*2			8.5*2
	Total Wattage		Kw	18			61
Others	Machine Dimensions(L*W*H)		m	2.5*1.9*3.08			3.5*2.6*4.6
	Shipping Size(L*W*H)		m	2.6*2*2.3			3.7*2.8*3.6
	Machine Weight		T	4.2			12
	Shipping Weight		T	4.5			12.5

Application:
1.Electric parts
2.Coil encapsulation parts
3.Daily products like microwave electriciron shells etc.
4.Auto industry
-Lamp reflector/Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell and branch electric head etc.
5.Precision parts
Circuit breakers shell without fuses,motor shell ,loudspeaker box,cassette and video parts,copying machine,faxing machine,printing machine,medical equipment,measuring apparatuses etc.
Youtube Video of Vertical Injection Molding Machine:1. https://youtu.be/057GXPzqVdg (15tons for usb cable)2. https://youtu.be/GbqaFx6VfRw (15tons for patch cord)3. https://youtu.be/rFBT0hXSCQQ (25tons for dc plug )4. https://youtu.be/RpGH9oKupH8 (25tons for VGA)5. https://youtu.be/o4TZ7Kc8RJ4 (25tons for fuse holder)6. https://youtu.be/o1kMwthMx-I (35Tons for Oxygen tube)7. https://youtu.be/CHEJshwKrXU (35tons for security seal lock)8. https://youtu.be/L7DKbu1cj3s (lab dumbbell plastic sample)9. https://youtu.be/ulByfm50_bs (45tons for BS plug )10. https://youtu.be/P1OLBd652Xo 45tons for Tools plug 11. https://youtu.be/KEQ67i4lPJY 45tons for Europeran plug 12. https://youtu.be/37wobT7-tqY C type 55tons for European plug 13. https://youtu.be/EKRNtaxmtTc Single Sliding Vertical Injection Molding Machine14. https://youtu.be/iUOU47cxrAg double Sliding Vertical Injection Molding Machine15. https://youtu.be/fY_RkC-bt9Y Door handle making by rotary table injection machine16. https://youtu.be/6pyClKEu5XQ Glue nails making by rotary table injection machine17. https://youtu.be/EHPlnn88Qe0 Two color rotary table injection machine18. https://youtu.be/Fno7_FFUY1c Vietnam feedback video (rotary table injection machine overmolding speaker)19. https://youtu.be/RgFyyAi9sbo Vietnam feedback video about making plug insert20. https://youtu.be/CPJonVclpLo Thailand client feedback video about making 3 pins plug21. https://youtu.be/Wo3xcb1QtFU South Korea feedback video22. https://youtu.be/CzQ2ThInMEQ Italy client feedback video23. https://youtu.be/q2ZN-rW9A-Y Syria client feedback video24. https://youtu.be/RKIp2l_Yvko Tuniasia client feedback video25. https://youtu.be/uUZ6igo_oHs Germany client feedback video 26. https://youtu.be/r3pL9n33fvU Argentia client feedback video27. https://youtu.be/IdGpr7y5mMw India client feedback video (rotary table injection machine )28. https://youtu.be/6zcRdcOyjgw India client feedback video (standard 55tons injection machine making cap )29. https://youtu.be/61LqO6cLp3o India client feedback video (usb cable) 30. https://youtu.be/cs4wERUMoNI Sri Lanka client feedback video31. https://youtu.be/84lbRneECYk Pakistan client use our machine 32. https://youtu.be/r3PO370hQko Turkish client feedback video 33. https://youtu.be/vrr6oJTrsj8 Egypt client feedback (55tons injection machine making plug )
34.https://youtu.be/SaxEgd-DfrU Mexico client feedback video
Packing & Shipping:
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us.

RFQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.

---
