Economic Hot Sale Automatic Laminate Cutter

Product Description

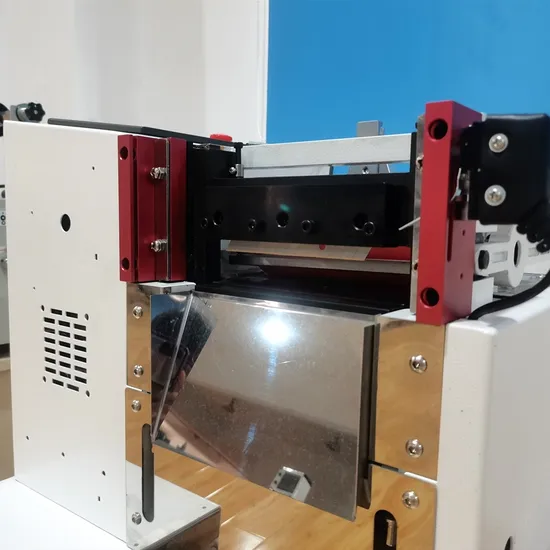

Economic hot sale automatic laminate cutter


Technical Parameters

Model	HX-160TQ
Voltage	220V
Power	375W
N.W.	90kg
G.W.	140kg
Cutting Length	0.1~9999.9mm
Cutting Width	1~160mm
Cutting precision	±0.1mm
Cutting speed	80-100cut/min(take 50 mm for example)
Measurement	550x550x1000mm

Machine Features

1.Equipped with two unwinding shaft for material laminating.

2. Laminating and cutting can be finished at one time.

3. Owing to the servo motor the cutting length is accurate,high precision can reach 0.1mm.

4.Automatic to preset length, quantity & speed on touch screen, it is not erased .even if power off & on.

5.Cutting length and cutting speed tunable
6.the cutting speed is 80~100cut per minute. (take 50mm long for example).

7.Cut up to 160mm wide material or multiple rolls(Cutting 2-3 tapes roll at one time)

8.cutting is neat due to using a cold cutter like scissors and blades are durable because they are
made of high-speed steel(HSS)

9.Full English LCD display,easy operating.and you can check the operation manual brochure, we will send together with the machine.

10.cutter safety guard included,no danger risk

11.adjustable pressure on feed roller for thin or smooth materials


Application

Ideal for cutting and laminating tape,label,conductive foam,fabric,metal foil,PVC,PET,OPP,PP,CPP,
LDPE, craft paper,insulation paper, copper / aluminum foil and release paper etc.



Our Services

1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory


FAQ:

1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer.


2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by carfrom there. We welcome all our clients, home and abroad, to visit us.

3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines,
laminating machines and rotary die cutting machines.

4. Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.

5. Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming
materials to the finished products. Our factory has obtained CE & ISO Certification


6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products
according to your requirement.

---
