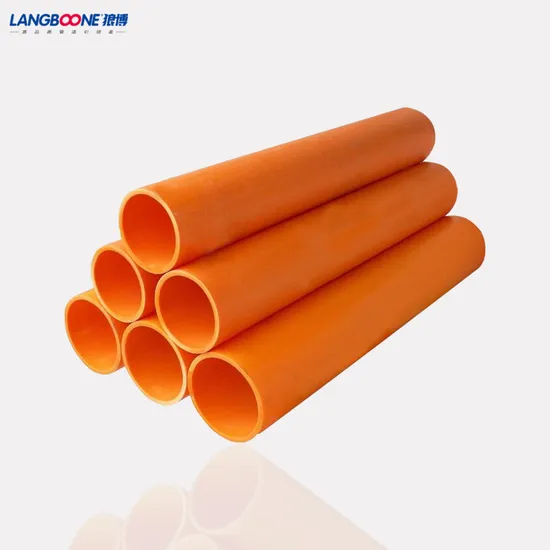

Orange Mpp Electrical Wire/Cable Protection Pipe High Pressure Plastic Conduits

Product Description

View more products,you can click the product keywords below...

PIPES
HDPE pipe	Steel Mesh PE Composite Pipe	Steel Skeleton PE Composite Pipe	Dual-sealing PE Composite Pipe
HDPE Double Wall Corrugated Pipe	Type-B HDPE Drainage Pipe	Type-C HDPE Drainage Pipe	MPP Cabel Conduits
FITTINGS
HDPE Electrofusion Fitting	HDPE Butt Welding Fitting	HDPE Fabricated Fitting	PP Compression Fitting
Steel Plate Socket ElectrofusionComposite Fitting	Dual-sealing Electrofusion Fitting	HDPE Drainage Fitting	MPP Cable Conduits Fitting

MPP power pipe adopts modified polypropylene as the main raw material. It does not need to dredge, dig up and destroy the road surface, and lay pipelines, cables and other construction projects in special sections such as roads, railways, buildings and river beds.
Compared with the traditional "digging method, trenchless pipe engineering more adapted to the requirements of environmental protection, because the traditional construction caused by the removal of dust, traffic congestion and other disturbing factors, this technology can also be unable to carry out excavation work in laying pipelines, such as Heritage Conservation District, downtown, and crops farmland protection areas, highways, rivers etc.
It has much advantages of high strength,good high temperature resistant performance,easy installing,convenient construction,low cost and so on.

Product Name	MPP Cable Conduit
Color	Orange
Standard	DL/T 802.7-2010
Specification	100-250mm
Pressure	SN24 SN32 SN40
Main application	power cable and comunication cable protection
Life span	More than 50 years

Resistant to Aging
------------------------
Pipes can be stored outdoors r used for 50years
Resistant to Corrsison
-----------------------------
Bright surface,bright orange,flexible,shiny,acid ands alkali resistance.Easyily cope with harsh environment such as cold and heat.Good wear Resistance
------------------------------
Reduced pressure loss in piplines and water consumption Good Crack Resistance
------------------------------
The presence of chemicals in the soil does not cuse any degradation of the pipeline.
Good Windability
------------------------
Select new raw materials,various specifications are complete,different thickness can be customized according to requirement.MPP pipe coupling
-------------------------
For buried construction way, New Materials,light weight and high strength
-------------------------------------------------------------
High Strength
-------------------
It has the advantage of strength ,rigidity,punching resistance,low linear expansion cofficient and creep resistance similar to steel pipes.Trenchless construction method
-------------------------------------------Trench construction method
-------------------------------------- 1.MPP power pipe has excellent electrical insulation.
2.The long term use temperature of MPP power tube -5~70ºC.
3.The tensile and compressive properties of MPP power pipe are higher than that of HDPE.
4.The MPP power pipe has high thermal deformation temperature and low temperature impact performance.
5.MPP power pipe light, smooth, small friction force, hot welding butt butt.

MPP Cable Conduit Pipe's Parameter Datas
Norminal Diameter/IN(mm)	Norminal Wall Thickness (mm)			Norminal Lenght (mm)
	Ring Stiffness (3%) Grade (Normal Temperature)
	SN24	SN32	SN40
100	8	8	10	6000/9000
125	8	10	12
150	10	12	14
175	12	14	16
200	14	16	18
225	16	18	20
250	18	20	20

Note:
1: The pipe wall thickness is base on the DL/T 802.7-2010 or specified EN/ISO standards
2: Colour of the pipe is orange ,others should be negotiate.
3: Application:Cable conduit,cable protection

---
