Woodworking Double Ended Mortising Machine for Mortise and Tenon Joint

Product Description

Product Description
The double end mortising machine is a specialized woodworking machine used to cut square or rectangular holes in a piece of lumber(timber), such as a mortise in a mortise and tenon joint.
ZD-MDK3003

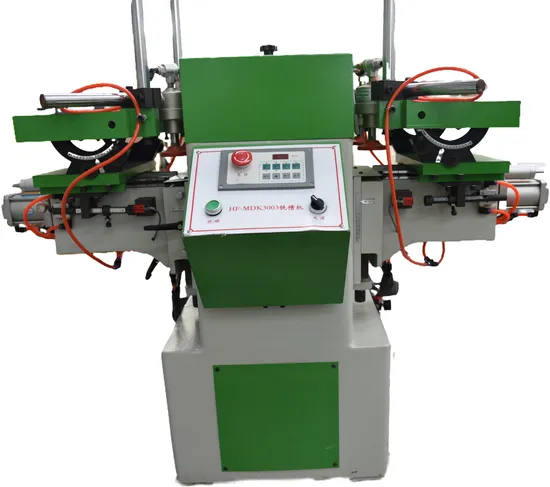

Detailed Photos
Features:
1.Double table,high speed spindle,high efficiency.
2.Suitable for mortise processing of doors,tables,chairs and other products.
3.The width can be adjusted by digital display,and at the same time,it can be inclined at 30 degrees on the work surface,which is used for the processing of inclined tongue and groove.
4.The main shaft assembly slides along the precision cylindrical guide rail,and the moving frequency is high to ensure the processing quality and efficiency.
5.PLC control system,the operation is more stable.
Product Parameters

Model	ZD-MDK3003
Power supply	3ph-380v/60hz
Tilting angle	±20º
Maximum tenon champer width	120+2R
Maxmum tenon groove depth	100mm
Spindle speed	10000r/min
Worktable lifter stroke	80mm
Total power	2.2kw
Weight	560kg
Overall dimensions	1030*1400*1250mm

Our company also produce CNC tenon machined perfectly cooperating with double ended mortising machine in woodworking as the right one of the following picture. And the color of machine is always customizable.
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers. About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Certifications

Our Customers

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .

---
