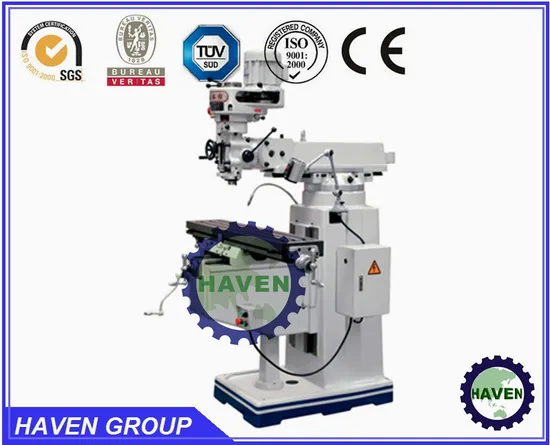

X6330 Radial Universal High Speed Turret Milling Machine

Product Description

X6330 Radial Universal High Speed Turret Milling Machine
Main features:
Equipped with low noise, high-speed precision milling head imported from Taiwan;
Combination use of guideway with plastic protection layer and guideway with hardened ground surface showing excellent wear resistance and quicker servo respinse; Mechanical efficiency;
Mechanical devices for working feeds in X and Y axis to increase cutting efficiency;
Reasonable construction and superior machining functions such as drilling, boring, reaming, milling of plane, surface, special shaped surface and inclined plane, and such functions available by use of the corresponding attachments as milling of helix surface, slot, gear and spline;
Built-in cooling system.
Main specification:

Working surface of table	300x1270	mm
Longitudinal travel	650	mm
Transverse travel	350	mm
Vertical travel	400	mm
Spindle taper	ISO30 or R8	Grade
Range of spindle speed	70-4500(16)	rpm
Range of longitudinal/transverse feeds of table	20-346(8)	mm/min
Number of longitudinal/transverse feeds of table	8
Main motor power	2.2(3HP)	kw
Feed motor power	0.37	kw
Ram travel	500	mm
Spindle sleeve travel	127	mm
Overall dimensions	2000x1660x2190	mm
Net weight of machine	1400	kg

---
