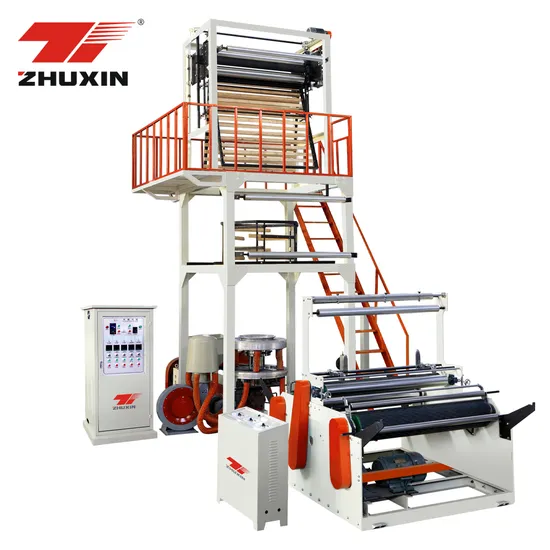

Sj-a Model High Speed Biodegradable PLA Pbat Sigle Layer Extruder Blown Extrusion Line Plastic Film Blowing Machine Price for LLDPE LDPE and HDPE

Product Description

SJ-A Series HD/LDPE Film Blowing Machine We are Film Blowing Machine manufacturer/supplier from china factory. We also can produce the Film Blowing Machine according to the client's requirement. We are always try our best to become the good Film Blowing Machine manufacturer/Supplier and welcome the customer from all over the world to contact with us The machine body is channel steel frame traction frequency friction, with single rolling friction, lift up and down which is suitable for blowing high-low pressure polyethylene industrial fiml and agricultural film.
PAREMETERS

Model		SJ-H45		SJ-H50		SJ-H55		SJ-H60	SJ-H65
Suitable Material		HDPE,LDPE,LLDPE
Film Width		100-500mm		300-600mm		400-800mm		500-1000mm	600-1200mm
Film Thickness	HD	0.009-0.1mm		0.009-0.1mm		0.009-0.1mm		0.009-0.15mm	0.009-0.15mm
	LD	0.02-0.15mm		0.02-0.15mm		0.03-0.15mm		0.03-0.15mm	0.03-0.15mm
Max Extrusion Output	HD	35kg/h		40kg/h		50kg/h		55kg/h	55kg/h
	LD	45kg/h		50kg/h		60kg/h		70kg/h	70kg/h
Extruder
Screw Diameter		φ45		φ50		φ55		φ60	φ65
Screw L/D Length		28:1/30:1
Screw Material		Sacm-645/38 Crmoala
Cylinder Material		Sacm-645/38 Crmoala
Cylinder Cooling		370W x2		370W x2		370W x2		370W x2	370W x2
Main Motor		11kw		15kw		18.5kw		22kw	22kw
Cylinder Temperature Control		3		3		3		4	4
Average Power Consume		12kw		18kw		22kw		25kw	22kw
Type of die
Die size	HD	φ60	φ80		φ80		φ100		φ100
	LD	φ100	φ120		φ180		φ200		φ220
Temperature Control		3	3		3		3		3
Air Ring		1	1		1		1		1
Air Blower		1.5kw	1.5kw		2.2kw		3kw		3kw
Center Steady Stick		1	1		1		1		1
Take up unit
Roller Width		600mm	700mm		900mm		1100mm		1300mm
Take-up Speed		10-100m/min	10-100m/min		10-100m/min		10-80m/min		10-80m/min
Take-up Motor		0.75kw	1.1kw		1.5kw		1.5kw		1.5kw
Winding Unit
Type		Surface Friction Type
Winding Motor		6N.m	10N.m		10N.m		16N.m		16N.m
Winding Speed		10-100m/min	10-100m/min		10-100m/min		10-80m/min		10-80m/min
Voltage		380V,50HZ,3PHASE
Outline Diameter(LxWxH)		3800x2000x4100mm	5000x2200x4500mm		5500x2500x5200mm		5800x2800x6300mm		5800x2800x6300mm
Weight		2000kg	2200kg		2500kg		2800kg		3000kg
Optional Equipment		1.Auto loader 2. Film surface treater 3. Rotary die head 4. Air compressor 5. Mechanics screen changer 6. Double wind

FAQ
1.Q:Are you a factory or trading company ?
A:We are a factory

2.Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China
About 40 minutes by plane from shanghai (5 hours by train )

3.Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years ,
We will send our professional engineer to install and test machine .So our after-sales service is always reliable.

4.Q:If your machines can print ?
A :Our machines is multifunction , do roll to roll printing , such as paper, plastic film , woven bag , nonwoven .
Surely , you can offer your products, Let us confirm it .We will suggest you the best project.

5 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
Question: Are you Manufacture or Trading Company?
Answer:We are printing machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.

6.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.

7.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.

8.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.

WELCOME YOUR INQUIRY ,PLEASE CONTACT HOLIDAY
We have been working hard to become your Purchasing Guide and provide you one-stop Purchasing service. We looking forward hear you soon.

---
