US$8,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Max.Capacity
300-400 L/min
Position of Pump Shaft
Vertical Edge
Transport Package
Wooden Pallet
Production Capacity
300sets/Year
Product Description

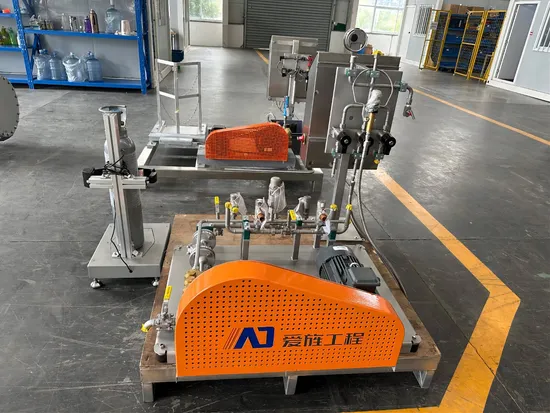

AJME CO2 Cylinder Filling Station for Brewery Product Description AJME's Cylinder Filling Unit consists of a high-pressure cylinder filling pump with a capacity of 600 kg/hr connected to the CO2 storage tank in a by-pass system.
BENEFITS
The Cylinder Filling Unit allow you easy filling of 6-40 kg type cylinders: Plug & Play - easy installation Intuitive parameter setting on easily readable display with easy touch buttons Electronic weighing control system with automatic zero control, auto tare Optionally, two weighing scale systems Quick coupling for cylinders Fast & easy access to Cylinders Easy maintenance
Functional description
1.When the filling of the cylinder stop, the CO2 is circulated back to the CO2 storage tank.
2.For easy operation, the cylinder is connected to the filling system with quick coupling. The correct filling amount of CO2 is adjusted on the scale.
3.The scale is supplied with an electronic weighing control system, with various facilities such as automatic zero control, auto-tare for registering known tare, output for printer or computer with indication of e.g. hour, item no., the customer no. and dispatch no. The scale of graduation is 20g.
Scope of suppy Cylinder filling pump with AC motor Filling and safety valves Electronic weighing system Frame mounted with base plate in stainless steel Optional with 2 weighing scale systems for even faster-filling Function Introduction
Technical specifcation: |
Fillingcapacity | 600kg/hr |
LiquidCO2Inletpressure | 13-23bar(g) |
PumpDischargepressure,max. | 96bar(g) |
ACmotor | 3kW |
Loadrange | 0-200kg |
Graduation | 20g |
Connectionforcylinderhead | quickconnection |
Cylinderheight | 200-1,600mm |
ACmotor | 3kW |
MainSupply | 3X380/440V+PE |
ControlVoltage | 230VAC/24VDC |
Frequency | 50Hz |
DegreeofProtection | IP55 |
Weight and dimensions: |
Baseplatedimension(forpositionofcylinders) | 400x500mm |
FootPrint(1cylinderstation) | 1210x1000mm |
FootPrint(2cylinderstation) | 1210x1590mm |
Weight(1cylinderstation) | approx.200kg |
Weight(2cylinderstation) | approx.240kg |
Company Info. About us:
•Established in 2015, AJME's engineering team has worked in CO2 Gas Process Engineering for more than 20 years in the biological fermentation and brewing industry.
• AJME-owned know-how for CO2 recovery, purification, liquefaction, liquid CO2 storage with a cryogenic tank, and CO2 evaporation to reuse in brewing and alcohol manufacturers
•AJME is the Expert to deliver the CO2 recovery engineering solution for beer brewing, alcohol, Whiskey, etc.
•AJME is a popular supplier and contractor for CO2 recovery plants. And we employ the biggest engineering team service for CO2 recovery engineering projects in China.
AJME can provide a complete set of CO2 recovery equipment with an output of 200Kg/h-10000kgs/h and standardized modules for each part, we can also upgrade existing equipment to meet production needs. After scientific calculation, experience optimization, and complete operation system protection, the equipment has the characteristics of reliable operation, low maintenance, and high recovery rate. AJME Manufacture Facility:
• Factory Location: Taizhou, Jiangsu Province • Workshop: 10,000 M2 workshop • Own experienced welders and fitters for installation manufacturing. • Operation base on ISO9000 quality management system • 35 employees
AJME Workshop Show: General Process for CO2 Recovery System:
WHY CHOOSE US? With a proven track record of success. Our plants have been operational for almost 10 years with a strong track record of efficiency and reliability.
AJME uses state-of-the-art technology. We continuously invest in research and development to ensure that our plants are at the cutting edge of CO2 recovery technology.
Skilled and experienced team. Our team members have a deep understanding of CO2 recovery processes and are committed to delivering high-quality results.
Offer flexible solutions. We can design and build custom plants to meet the specific needs of our clients, ensuring that they get the exact solution they need.
We prioritize sustainability. Our plants are designed to minimize their environmental impact and to operate in an energy-efficient manner.
Strong commitment to safety. We prioritize the safety of our employees, clients, and the environment, and have strict safety protocols in place to ensure that our plants operate safely and smoothly.
Competitive pricing. We strive to offer competitive pricing for our CO2 recovery plants, ensuring that our clients get the best value for their investments. AJME's Customers:
AJME Capability for CO2 Recovery Systems:
Capacity | 200-10000kgs/h | CO2 gas based on suction conditions |
Inlet CO2 plant Purity | >95,97 or 99 | % v/v |
CO2 outlet purity | > 99.998% | % v/v (O2 <5ppm v/v) |
Storage conditions | 17.5 | Barg & -24 ºC |
AJME CO2 System Operation Index:
Our projects for reference:
>>
