Agricultural Self-Propelled Wheeled Corn Single-Row Corn Harvester

Product Description

Product Description

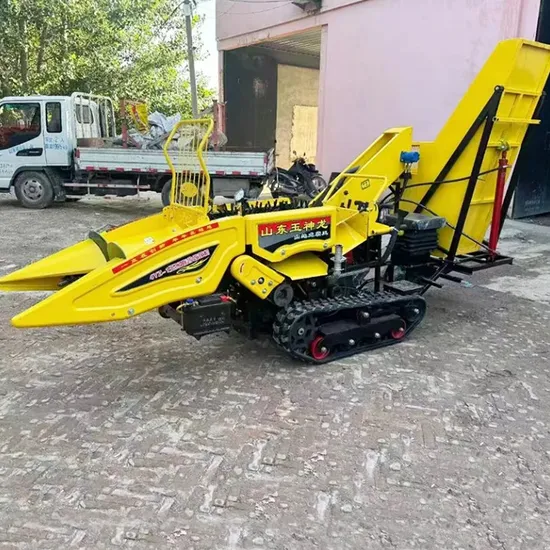

4YZ-1 corn harvester can complete the function of corn ear picking, husking and straw crushing in one row at a time. The harvester Equipped with double collecting boxes, stubble height adjustable, small turning radius easy operation.The straw is crushed directly and return to field, the peeling performance is very clean.
Our Advantages
Advantages of Corn harvester
1. Small size, light weight and easy to operate.
2.16-25 horsepower, 100-bore water-cooled electric starter (hand crank in extreme cases), brand-name diesel engine, abundant power, sturdy and durable, low failure rate:
3. Hydraulic left and right lifting system (can be changed to manual lifting if necessary), normal operation can be performed on flat and sloping ground.
4. Walking system. Optimized design is carried out on the basis of the gearbox of the walking tractor. The spare parts are universal and the maintenance and adjustment are convenient.
5. The design of high and low stem pulling roller and reeling wheel has the function of preventing grass entanglement.
6. The speed of the harvester has high and low gear design.
7. The four-roller peeling efficiency is higher and cleaner, and it is equipped with a particle recovery bin
8. The front and rear height (stubble height) of the header is adjustable.
9. 500-12 high flower, high wear-resistant tires, stepless adjustment of wheel track 600-900mm.
10. Folding walking saddle (do not ride during work).
11. Anti-particle bumping rubber sheet.
12. LED lighting, 45AH battery, self-charging of the engine
13. Rod support, guide roller
14. Parking brake.
15. Battery voltage display.
Product Parameters
Single row corn harvester parameters

Power	Diesel 16HP/ 25HP water-cooled electric start
Wheeled type size	2.35*0.85*1.1m
Crawler type size	3.85*0.88*1.85m
Work efficiency	1-2 acres per hour
Weight	680kg/900kg
Peeling rate:	98%
Stubble height	15cm
Harvesting width	more than 400mm
