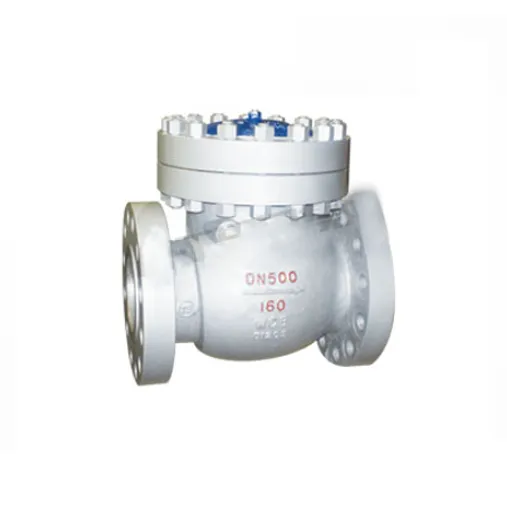

Specializing in The Production of Stock Supply Corrosion-Resistant Cast Steel Flanged Oxygen Check Valve

Product Description

Product Description A check valve, also known as a non-return valve, is a type of valve that allows fluid (liquid or gas) to flow in one direction while preventing backflow in the opposite direction. It is an automatic valve, meaning it operates without manual assistance or external control.
Key Features of a Check Valve: One-Way Flow: Ensures unidirectional flow in piping systems. Automatic Operation: Opens and closes based on the pressure of the fluid. Prevents Backflow: Protects equipment and maintains system efficiency by stopping reverse flow. Versatility: Suitable for various industries, including water supply, oil and gas, chemical, and HVAC systems. Common Types of Check Valves: Swing Check Valve:
Features a disc that swings open or closed. Common in large-diameter pipes and systems with slow-flowing fluids. Ball Check Valve:
Uses a ball to block reverse flow. Compact and suitable for high-pressure systems. Lift Check Valve:
Has a disc or piston that lifts off its seat when flow occurs. Ideal for high-pressure applications. Wafer Check Valve:
Compact and lightweight design. Installed between two flanges in tight spaces. Diaphragm Check Valve:
Uses a flexible diaphragm to prevent backflow. Common in applications requiring a sanitary design. Dual Plate Check Valve:
Consists of two half-circle plates that open and close with flow. Lightweight and suitable for large systems. Advantages: Simple and automatic operation. Low maintenance. Available in a range of materials for different applications (e.g., stainless steel, bronze, plastic). Applications: Preventing contamination in water systems. Protecting pumps and compressors from damage. Maintaining pressure in pipelines. Product Parameters

item	valve
Application	Industrial Usage,Water Industrial Usage,Household Usage
Port Size	DN10-DN2000
Warranty	24 month
Place of Origin	China
	Jiangsu
Model Number
Power	none
Temperature of Media	High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Brand Name	yoonad
Structure	Check
Media	Gas, Oil, Water, Chemical, Steam
Customized support	OEM, ODM, OBM
Delivery Time	7-15 Days
Coating	Customized
Design	BS 1868 / API 6D / ASME B16.34
End Connection	Threaded, Socket Weld
Face to Face	ASME B16.10
End Flange	ASME B16.5
Test	API598
Certificates	CE/ISO/SGS/Mtc
OEM/ODM/OBM	Customized
Trim	Ss AISI 410

Q1: How long is the product warranty? A1: Within 24 months, we will provide you with replacement or repair services, except for quality problems caused by human factors Q2: Do you have any MOQ limit for valve orders? A2: No, the MOQ is 1 unit for sample inspection. Q3: Is there a wholesale discount? A3: Wholesale discounts are available for large-volume orders. Please contact us for discount information. Q4: Does it support customized valve needs? A4: It can be customized. Please confirm the customization details with us. Q5: Are you a trading company or a manufacturer? A5: We are a manufacturer and a factory. Q6: Where is your factory? A6: Keke Group Co., Ltd., headquartered in Wenzhou, Zhejiang Province

---
