US$1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
NV Vertical Pump
Screw Number
Single Screw Pump
Screw Suction Method
Single Suction
Pump Shaft Position
Horizontal
Application
Sewerage Treatment, Food, Chemical
Applicable
All Industries
Advantage
Steady Uniform Flow
Transport Package
Export Wooden Case
Production Capacity
5000pieces/Year
Product Description
Z.NANCHI single screw pump is applicable to almost all industries. It can transport almost all types of media continuously and stably, with low pulsation, no shear and speed proportional metering. It can pass through large particle solids.
We have a "WOLF TEAM":
More than 20 years technological research
Integrity, Standardization, and Efficient is our work principles
Winning the market with technology and innovation
Welcome to contact us, we are a professional group, let talk the details with you.
https://zjncpump.en.made-in-china.com/contact-info.html

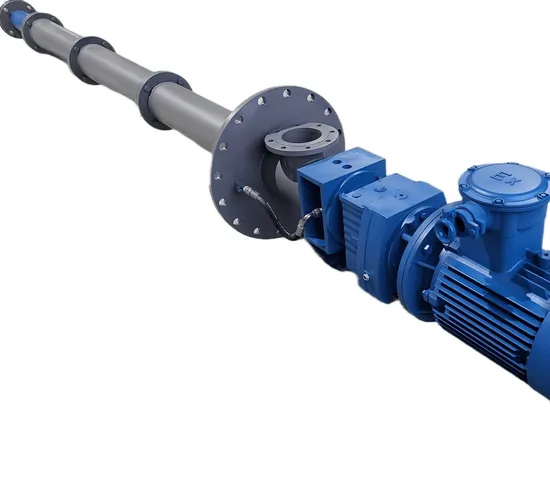

NV vertical pumpLifting ring mountingThe pump has a lifting ring that can be lifted by a crane. It is used to transport fluid in various containers such as barrels, containers, storage tanks, settling tanks, underground wells, pits, etc.The insertion depth can be customized
Flange mountingThe pump is equipped with a flange mounting plate installed on the top of the container to transport media from enclosed tanks, storage tanks, and boxes. Depending on the size, speed, and depth of the underwater working point of the pump, it can be fixed at the suction of the pump. The fixed point is self-centered and can be easily removed or re-installed.The insertion depth can be customized.
Wall mounting
This pump is often used for open collection tanks and is installed on the wall. Depending on the size, speed, and depth of the underwaterworking point of the pump, it can be fixed at the suction of the pump. The fixed point is self-centered and can be easily removed or re-installed.The insertion depth can be customized.
Here, Let's check the Components List Explosive View
| 101.Stator | 0017 Spring washer | 0068 Hexagon nut |
| 105.Rotor | 0018 Hexagon nut | 1211 Suction chamber |
| 1111 Bearing housing | 0043 Flat washer | 1221 Discharge body |
| 1112 Connecting shaft | 0061 O-ring | 1301 Intermediate shaft |
| 0011 Hexagon bolt | 0062 PTFE gasket | 1311 Bar |
| 0012 Flat washer | 0063 Screw plug | 1312 Leg |
| 0013 Spring washer | 0064 PTFE gasket | 1410 Seal components |
| 0014 Hexagon nut | 0065 Screw plug | 1510 Universal joint parts |
| 0015 Hexagon bolt | 0066 Flat washer | 1610 Reducer |
| 0016 Flat washer | 0067 Spring washer | 1710 Motor |
NV Vertical Pump
Any interesting , welcome to choose: https://zjncpump.en.made-in-china.com/product-list-1.html
| Model | Rated pressure | Speed r/min |
| 238 | 196 | 156 | 137 | 110 | 88 | 70 | 56 |
| Q | P | Q | P | Q | P | Q | P | Q | P | Q | P | Q | P | Q | P |
| MPa | m³/h | KW | m³/h | KW | m³/h | KW | m³/h | KW | m³/h | KW | m³/h | KW | m³/h | KW | m³/h | KW |
| NG031 | 0.6
1.2
1.8
2.4 | 0.9
0.9
0.9
0.9 | 0.55
0.75
1.1
1.5 | 0.7
0.7
0.7
0.7 | 0.55
0.75
1.1
1.1 | | | | | | | | | | | | |
| NG038 | 0.6
1.2
1.8
2.4 | 1.6
1.6
1.6
1.6 | 0.75
1.5
2.2
3.0 | 1.0
1.2
1.2
1.2 | 0.55
1.1
1.5
2.2 | | | | | | | | | | | | |
| NG045 | 0.6
1.2
1.8
2.4 | 3.2
3.2
3.2
3.2 | 1.1
2.2
4.0
5.5 | 2.6
2.6
2.6
2.6 | 1.1
2.2
3.0
4.0 | 2.3
2.3
2.3
2.3 | 1.1
2.2
3.0
4.0 | | | | | | | | | | |
| NG053 | 0.6
1.2
1.8
2.4 | 6.5
6.5
6.5
6.5 | 3.0
5.5
7.5
11 | 5.2
5.2
5.2
5.2 | 2.2
4.0
5.5
7.5 | 4.8
4.8
4.8
4.8 | 2.2
4.0
5.5
7.5 | | | | | | | | | | |
| NG063 | 0.6
1.2
1.8
2.4 | 9.7
9.7
9.7
9.7 | 4.0
7.5
11
15 | 7.9
7.9
7.9
7.9 | 3.0
5.5
11
11 | 7.3
7.3
7.3
7.3 | 3.0
5.5
7.5
11 | | | | | | | | | | |
| NG076 | 0.6
1.2
1.8
2.4 | 13.4
13.4
13.4
13.4 | 5.5
11
15
18.5 | 10.9
10.9
10.9
10.9 | 4.0
7.5
11
15 | 10.1
10.1
10.1
10.1 | 4.0
7.5
11
15 | 7.4
7.4
7.4
7.4 | 3.0
5.5
7.5
11 | | | | | | | | |
| NG086 | 0.6
1.2
1.8
2.4 | 27.1
27.1
27.1
27.1 | 11
18.5
30
37 | 22
22
22
22 | 7.5
15
30
30 | 17.4
17.4
17.4
17.4 | 5.5
11
18.5
22 | 15.1
15.1
15.1
15.1 | 5.5
11
18.5
18.5 | 12.1
12.1
12.1
12.1 | 4.0
7.5
15
15 | | | | | | |
| NG090 | 0.6
1.2
1.8
2.4 | 38.8
38.8
38.8
38.8 | 11
18.5
37
45 | 31.5
31.5
31.5
31.5 | 11
15
30
37 | 24.9
24.9
24.9
24.9 | 7.5
15
22
30 | 21.6
21.6
21.6
21.6 | 7.5
15
18.5
30 | 17.4
17.4
17.4
17.4 | 5.5
11
15
22 | 13.7
13.7
13.7
13.7 | 4.0
11
15
18.5 | | | | |
| NG107 | 0.6
1.2
1.8
2.4 | 38.8
38.8
38.8
38.8 | 11
18.5
37
45 | 31.5
31.5
31.5
31.5 | 11
15
30
37 | 24.9
24.9
24.9
24.9 | 7.5
15
22
30 | 21.6
21.6
21.6
21.6 | 7.5
15
18.5
30 | 17.4
17.4
17.4
17.4 | 5.5
11
15
22 | 13.7
13.7
13.7
13.7 | 4.0
11
15
18.5 | | | | |
| NG136 | 0.6
1.2
1.8
2.4 | 54
54
58
58 | 15
30
55
75 | 44
44
47.5
47.5 | 15
30
45
55 | 35
35
37.8
37.8 | 11
22
37
45 | 30.4
30.432.9
32.9 | 11
18.5
30
45 | 24.4
24.4
26.4
26.4 | 7.5
15
30
30 | 19.3
19.3
20.9
20.9 | 7.5
15
18.5
30 | | | | |
| NG148 | 0.6
1.2
1.8
2.4 | 90.0
103.7
103.7
103.7 | 37
75
110
160 | 72.3
85.0
85.0
85.0 | 30
55
90
110 | 56.0
67.4
67.4
67.4 | 22
45
75
90 | 47.9
58.9
58.9
58.9 | 18.5
45
75
90 | 37.4
47.1
47.1
47.1 | 15
37
55
75 | 29.1
37.5
37.5
37.5 | 11
30
37
55 | 22.5
29.7
29.7
29.7 | 11
22
30
45 | | |
| NG168 | 0.6
1.2
1.8
2.4 | 163.4
176.4
176.4
176.4 | 55
132
200
250 | 133.0
144.8
144.8
144.8 | 45
110
160
200 | 104.5
114.8
114.8
114.8 | 37
75
110
160 | 90.6
100.5
100.5
100.5 | 30
75
110
132 | 71.9
80.4
80.4
80.4 | 30
55
90
110 | 56.7
64.1
64.1
64.1 | 22
45
75
90 | 44.6
50.8
50.8
50.8 | 15
37
55
75 | 35.2
40.5
40.5
40.5 | 15
30
45
55 |
Some processing
Packing : We use wooden boxes for packaging
More details, please contact us :https://zjncpump.en.made-in-china.com/contact-info.html
>>
