FUDA High-Accuracy Double Pipes Goose Down Blanket Filling Machine

US$15,999.00-21,999.00 1 set (MOQ)

Basic Info.

Model NO.
2 Ports with 8 Weighing Hoppers
Feature
Automatic Weighing, Charging & Suction, Quantitative Down Charging, Compact Size
Filling Valve Head
Two Nozzles
Product Name
Double Pipes Goose Down Blanket Filling Machine
Display Device
7" Touch Screen
Weighing Cycles
8 Scales
Filling Range
0.2-35grams
Show Weight Accuracy
0.01gram
Nozzles Size
19mm and 25mm
Filling Materials
Duck Down, Goose Down
Stuffing Materials
Ball Fiber, Staple Fiber
Application
Down Jacket, Winter Clothes
Power
1Phase AC220V 3Kw
N.W(Kgs)
750kg
G.W(Kgs)
950kg
Dimension(L*W*H)
3000*3500*2000mm
Air Supply
0.6-0.8Mpa
Storage Volume
10-15Kg
Transport Package
Wooden Case
Specification
2 Ports 8 Scales
Trademark
FUDA
Origin
China
HS Code
8479899990
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
225.00cm * 116.00cm * 226.00cm
Package Gross Weight
950.000kg

Product Description

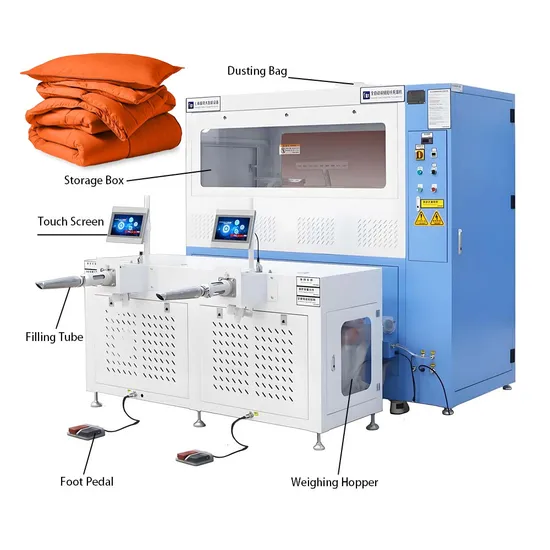

Product Overview
8T6D Automatic Goose Down Filling Machine with 2 Ports 8 Scales. the goose-down filling process of the quality down jacket was made by FUDA, each grid-filling range is around 0.2-35 grams, the average error is 0.1-0.2 grams, and the average daily capacity is around 600-800 jackets. the 2 Heads 8 Scales automatic filling machine is suitable for a 100-150 person garment factory that focuses on the quality garment process. Product Description
Product Advantages
High precision The dynamic error accuracy is ±2%.
Control system - Compiled PLC Quickly, the communication speed rate: 0.4ms.
Touch screen - HD HMI Easy to learn and operate, Multi-language, sensitive touch.
Feeding Material - accuracy the error accuracy is controllable.
Returning Material - Quickly The one-key operation is to empty the remaining material in all scales.
Dedusting recycling - Clean Dustless working environment, reducing raw material wastage.
Gear motor - low noise Low noise, high torque, long life, and easy maintenance.
Appearance - The Beauty of Simplicity Compact design, clean white, technology blue.
Product Parameters
Model NO. H8T6D
Product Name Automatic Goose Down Filling Machine
Filling Ports Double-Heads
Filling Range 0.2-35g
Display Accuracy 0.01g
Nozzle Size 19mm/25mm with air return, 32mm for duvet
Storage Volume 10-15Kg
Filling Materials Duck Down, Goose Down, Polyester Fiber, Ball Fiber
Application Down Jacket, Down Pants, Down Duvets
Daily Capacity 600 plus down jackets
Power Supply 1Ph AC220v 3.0Kw
Air Supply 0.6-0.8Mpa, 7.5Kw
Display Device 10" Touch Panel
Control System PLC with 8 Weighing Units
Footprint 2.5*3.5*2.0m(L*W*H)
Net Weight 750Kg
Gross Weight 950Kg
Transport Package Wooden Case
Specification 2 Ports 8 Scales
Trademark FUDA
Origin Shanghai
Applications
Detailed Photos
