16cavity Hot Runner Short Tail Pet Preform Plastic Injection Mould/Mold

Product Description

Specification of 16Cavity Hot Runner Preform Mould
https://chinadoria.en.made-in-china.com/product-list-1.html
1,PET Preform Mould Main Components Specification and Advantages:
1.1 Specially designed cooling circuits
Proper design reduce molding cycle time to 15 seconds( with proper water chiller and injection machine) about 3-5 shots per minute
1.2 Hot runner design
Make sure the high quality of preform products.
1.3 Heater
Anole Germany
1.4 Valve gated design with Automatic drop
Each cavity has its independent heating zone and temperature is measured by independent thermocouple...(advantages: Easily avoid some problems such as white or drawbench on bottom).
1.5 Valve gated type without tail reduces labor force.
Processed by high presion CNC machine and numerical control loathe machine
1.6 Lowest weight and dimensional variation
Thickness between max. Part and min. Part is not more than 0.05mm make sure that every parts can match well

2,Material of mould:

2.1 frame of mould	good quality imported 50# steel with Chrome on the face; (HRC:28R);
2.2 Core and cavity	2316 Stainless steel (HRC:44-46R: German);
2.3 Screw	2316 Stainless steel (HRC:44-46R: German);
2.4 Hot runner	P20 steel (HRC:28R, China);
2.5 Valve	SKD61 and SKH51steel(HRC:59-61R, China);
2.6 The other materials are adopted international standard parts;

3,Features of the mould:
3.1 Screw is made of imported nit-riding steel as the International Standard with high hardiness and long service life.
3.2 Hot runner (German HASCO), adopt best cooling system.
3.3 It can shorten the processing days, raise efficiency, improve the quality and appearance of the products by adopts this hot runner.
4. Electric Heating Components
1. German Hottest heating components.
2. German intelligent temperature controller (PID continuous power controlling).
3. Offering temperature controller and voltage controller according to customers' requirement
5. After-Sales Service
Technologists professional in after-sales line and excellent credit assures stable operation of the machines.

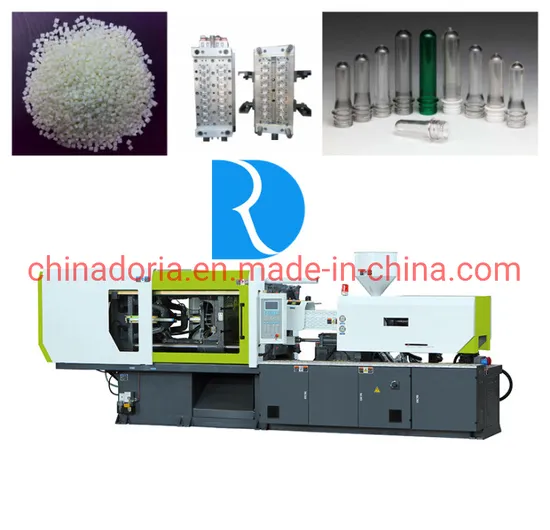

6. Pictures of mould:
7. Package of moulds:
8. Frequently Asked Questions:
Q: What are types of 16cavity preform mould could make?
A: Well, you could make 16cavity hot runner sealing preform mould and 16cavity hot runner opening type (short tail) perform mould.
Q: How to finish the preform design?
A: The first option, you could send us your preform samples, and we will make the design according to your samples.
The second option: if you do not have preform sample, you could send us preform sketch with dimension, and we could make final files to you.
Q: How to test the preform mould?
A: The first option, you could come to our factory to check the testing by yourself.
The second option, if you too busy to come to check, we will send video of testing to you to check.
Q: Could you send preform samples to us to check when you finish the testing?
A: Yes, we will send preform samples to you to check after testing.
9. About us:
Plastic PET preform manufacturer:
PET preform for 2gallon bottle
300g PET preform for water bottle
PET preform for 3gallon bottle
430g PET preform for water bottle
PET preform for 4gallon bottle
530g PET preform for water bottle
55mm 560g PET preform for bottle
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
10. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
